Creating and Consuming a WCF Service in Silverlight

Posted by: Suprotim Agarwal , on 11/12/2008, in Category Silverlight 2, 3, 4 and 5
Views: 110204
Abstract: In this article, we will create a Silverlight application that communicates with a WCF service to consume data. We will first create a WCF service that connects to the Northwind database and retrieves Customer details. We will then consume this WCF Service and bind the data to a DataGrid in Silverlight.
Creating and Consuming a WCF Service in Silverlight

In this article, we will create a Silverlight application that communicates with a WCF service to consume data. We will first create a WCF service that connects to the Northwind database and retrieves Customer details. We will then consume this WCF Service and bind the data to a DataGrid in Silverlight.
I am using Visual Studio 2008 with SP1 and am using the final release of Silverlight. If you are using Silverlight Beta 2, check Silverlight 2 Beta 2 TO Silverlight 2 Final Release - A Complete Step By Step Guide for Upgrading your Development Environment. This article also makes use of the new language extensions of C# 3.0/ VB 9.0. For those who are not familiar with these new language features, check Getting Ready for .NET 3.5 and LINQ – Exploring C# 3.0. VB.NET users, check over here.
Let us get started
Step 1: Open VS 2008 > File menu > New > Project > Select Silverlight from the Project types > Select Silverlight Application from the Visual Studio installed templates. Type the name as SilverlightWithWCFService and click OK.
Step 2: In the 'Add Silverlight Application' box, select 'Add a new ASP.NET Web project to the solution to host Silverlight' > Select ‘ASP.NET Web Application Project' as the Project Type and the Name as 'SilverlightWithWCFService.Web' for the application. Press OK.
Creating a Silverlight enabled WCF Service
Step 3: We will now add a WCF Service to this project. Right click the SilverlightWithWCFService.Web project > Add > New Item > Select ‘Silverlight’ in the Categories page > Silverlight-enabled WCF Service > Type name as ‘SampleService.svc’ > Add.
WCF Service Template
Note: Creating a WCF Service using the ‘Silverlight-enabled WCF Service’ template sets the correct configuration for using WCF. It sets the binding to basicHttpBinding and makes the service ASP.NET compatible. If you have existing WCF services, you can make them work with Silverlight by changing the default binding from wsHttpBinding to basicHttpBinding.
For simplicity sake, I have not hosted the service on IIS. I am using the server that comes built-in with Visual Studio 2008. The server automatically allocates a port number. If you would like to keep the port number fixed, Right click the project > select the ‘Web’ tab > Select the radiobutton ‘Specific port’ > I am using the port 49551. Build the Solution.
Note: If the protocol, path or the port number of the service differs from that of the Silverlight application, it is a Cross Domain call in Silverlight. You would need a clientaccesspolicy.xml kept in the root of the server where the service is hosted in order to make Cross Domain calls. Read more about it over here
Step 4: We need to query the ‘Customers’ table in the Northwind db and return a list of type Customers. Now C# 3.0/ VB 9.0 introduces features like the ‘Anonymous type’ to cut down on the code required to create and instantiate a class using ‘the old way’. However, if you have to pass the result to a webservice or to a different part of your application, you would need to define a class as shown below. Right click the 'SilverlightWithWCFService.Web' project > Add > Class > we will call our class ‘Customer’.
C#
namespace SilverlightWithWCFService.Web
{
    public class Customer
    {
        public string CustomerName { get; set; }
        public string CompanyName { get; set; }
        public string ContactName { get; set; }
    }
}
VB.NET
Namespace SilverlightWithWCFService.Web
      Public Class Customer
            Private privateCustomerName As String
            Public Property CustomerName() As String
                  Get
                        Return privateCustomerName
                  End Get
                  Set(ByVal value As String)
                        privateCustomerName = value
                  End Set
            End Property
            Private privateCompanyName As String
            Public Property CompanyName() As String
                  Get
                        Return privateCompanyName
                  End Get
                  Set(ByVal value As String)
                        privateCompanyName = value
                  End Set
            End Property
            Private privateContactName As String
            Public Property ContactName() As String
                  Get
                        Return privateContactName
                  End Get
                  Set(ByVal value As String)
                        privateContactName = value
                  End Set
            End Property
      End Class
End Namespace
Note: C# 3.0 supports Automatic properties whereas VB.NET 9.0 does not.
Step 5: In your web.config, create a <connectingString> as shown below:
      <connectionStrings>
            <add name="NorthwindConnectionString" connectionString="Data Source=(local);Initial Catalog=Northwind;Integrated Security=True"/>
      </connectionStrings>
Now go back to you SampleService.cs or vb and write the following code
C#
using System.ServiceModel;
using System.ServiceModel.Activation;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;

namespace SilverlightWithWCFService.Web
{
    [ServiceContract(Namespace = "")]
    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    public class SampleService
    {

        [OperationContract]
        public List<Customer> CustomerList()
        {
            string nwConn = System.Configuration.ConfigurationManager.ConnectionStrings["NorthwindConnectionString"].ConnectionString;
            var custList = new List<Customer>();
            using (SqlConnection conn = new SqlConnection(nwConn))
            {
                const string sql = @"SELECT TOP 10 CustomerID, CompanyName, ContactName FROM Customers";
                conn.Open();
                using (SqlCommand cmd = new SqlCommand(sql, conn))
                {
                    SqlDataReader dr = cmd.ExecuteReader(
                        CommandBehavior.CloseConnection);
                    if (dr != null)
                        while (dr.Read())
                        {
                            var cust = new Customer
                            {
                                CustomerName = dr.GetString(0),
                                CompanyName= dr.GetString(1),
                                ContactName = dr.GetString(2)
                            };
                            custList.Add(cust);
                        }
                    return custList;
                }
            }
        }

        // Add more operations here and mark them with [OperationContract]
    }
}

VB.NET
Imports System.ServiceModel
Imports System.ServiceModel.Activation
Imports System.Collections.Generic
Imports System.Data
Imports System.Data.SqlClient

Namespace SilverlightWithWCFService.Web
      <ServiceContract(Namespace := ""), AspNetCompatibilityRequirements(RequirementsMode := AspNetCompatibilityRequirementsMode.Allowed)> _
      Public Class SampleService

            <OperationContract> _
            Public Function CustomerList() As List(Of Customer)
                  Dim nwConn As String = System.Configuration.ConfigurationManager.ConnectionStrings("NorthwindConnectionString").ConnectionString
                  Dim custList = New List(Of Customer)()
                  Using conn As New SqlConnection(nwConn)
                        Const sql As String = "SELECT TOP 10 CustomerID, CompanyName, ContactName FROM Customers"
                        conn.Open()
                        Using cmd As New SqlCommand(sql, conn)
                              Dim dr As SqlDataReader = cmd.ExecuteReader(CommandBehavior.CloseConnection)
                              If dr IsNot Nothing Then
                                    Do While dr.Read()
                                          Dim cust = New Customer With {.CustomerName = dr.GetString(0), .CompanyName= dr.GetString(1), .ContactName = dr.GetString(2)}
                                          custList.Add(cust)
                                    Loop
                              End If
                              Return custList
                        End Using
                  End Using
            End Function

            ' Add more operations here and mark them with [OperationContract]
      End Class
End Namespace
The code shown above connects to the Northwind database and pulls the TOP 10 Customer records from the Customers table. The return type is a List<> of type Customers. You can test this service by right clicking the Service > View in Browser.

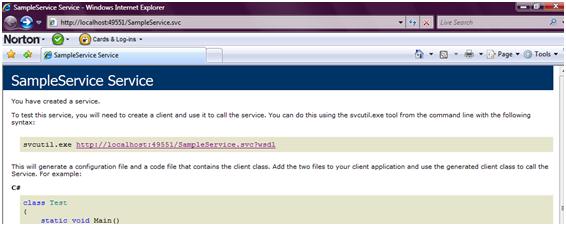

Sample Service
Click the WSDL (http://localhost:49551/SampleService.svc?wsdl) to view the operations and bindings.
Creating Silverlight Client to consume WCF Service

Once the WCF Service has been created, it’s time to consume this service using Silverlight. Follow these steps:
Step 6: We will now create a Silverlight client that will consume the WCF service. Right-click the SilverlightWithWCFService project (one containing Page.xaml) in Solution Explorer > Select Add Service Reference > Enter the url where the service is running http://localhost:49551/SampleService.svc > Click the Go button and the service will be displayed as shown below along with the operations it supports
ServiceWCFReference
I have renamed the Namespace field as ‘CustomerService’. Click Ok.
You will observe that a new folder called ‘Service References’ gets created which contains class and methods to call the service.
Go to Page.Xaml.cs or Page.Xaml.vb and add the following namespaces
C#
using System.ServiceModel;
using SilverlightWithWCFService.CustomerService;
VB.NET
Imports System.ServiceModel
Imports SilverlightWithWCFService.CustomerService
We will now call the service. All WCF service calls are made asynchronously. Since the call is asynchronous, we will need an asynchronous method that starts the communication and an event which will be raised when the call completes as shown below:
C#
    public Page()
    {
        InitializeComponent();
        SampleServiceClient client = new SampleServiceClient();
        client.CustomerListCompleted += new EventHandler<CustomerListCompletedEventArgs>(client_CustomerListCompleted);
        client.CustomerListAsync();
    }

    void client_CustomerListCompleted(object sender, CustomerListCompletedEventArgs e)
    {

    }
VB.NET
      Public Sub New()
            InitializeComponent()
            Dim client As New SampleServiceClient()
            AddHandler client.CustomerListCompleted, AddressOf client_CustomerListCompleted
            client.CustomerListAsync()
      End Sub

      Private Sub client_CustomerListCompleted(ByVal sender As Object, ByVal e As CustomerListCompletedEventArgs)

      End Sub
Step 7: Add a DataGrid from the Silverlight Controls Toolbox to the Page.Xaml.

<Grid x:Name="LayoutRoot" Background="White">

<data:DataGrid x:Name="CustomerGrid" Margin="3"></data:DataGrid>

</Grid>

In the client_CustomerListCompleted, bind the Grid with the result.
C#
    void client_CustomerListCompleted(object sender, CustomerListCompletedEventArgs e)
    {
        CustomerGrid.ItemsSource = e.Result;
    }
VB.NET
      Private Sub client_CustomerListCompleted(ByVal sender As Object, ByVal e As CustomerListCompletedEventArgs)
            CustomerGrid.ItemsSource = e.Result
      End Sub

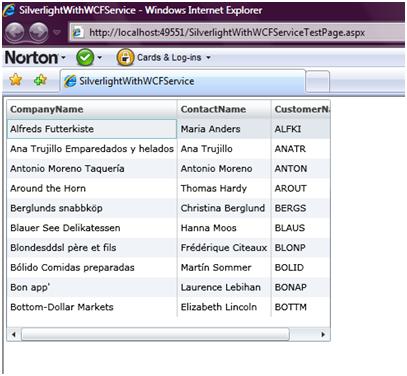

On running the application, the results will be displayed as shown below:
Running App
That’s all that is required to configure the Grid. You will notice that the Grid contains all the standard features to Sort, Select, Resize columns, Edit etc and is quiet customizable. In this article, we saw how to create and consume a WCF service using a Silverlight client. I hope this article was useful and I thank you for viewing it.
