Consume an ASP.NET WebService returning List<> with Dates using jQuery

Posted by: Suprotim Agarwal , on 5/21/2009, in Category jQuery and ASP.NET
Views: 50763
Abstract: In this article, we will see how to consume an ASP.NET WebService using jQuery. I will be demonstrating how to consume a .NET List<> returning Date fields via a .NET webservice, using jQuery. JSON does not handle dates well and we will see how the jMSAjax plug-in helps us solve the date problem.
Consume an ASP.NET WebService returning List<> with Dates using jQuery

In this article, we will see how to consume an ASP.NET WebService using jQuery. I will be demonstrating how to consume a .NET List<> returning Date fields via a .NET webservice, using jQuery. We will be using both the jQuery.ajax ($.ajax) and the jMSAjax plug-in to retrieve data from an ASP.NET WebService. JSON does not handle dates well and we will see how the jMSAjax plug-in supports ASP.NET Date formatting.
Note: I assume you are familiar with jQuery. If you are new to jQuery, then before moving ahead, I would recommend you to check out Using jQuery with ASP.NET - A Beginner's Guide. Please do take a note that this article uses jQuery’s current version - jQuery 1.3.2 and jQuery 1.3.2 Visual Studio 2008 Autocomplete documentation.
Let’s create our webservice first.
Step 1: Open Visual Studio 2008 > File > New > WebSite > Give it a name and location and click OK.
Step 2: Now right click the project in the Solution Explorer > Add New Item > Select WebService from the templates > Give it a name ‘EmployeeList.asmx’ and click on Add.
Step 3: A code file gets created in the App_Code directory. The default code for the WebService contains a ‘Hello World’ method. Remove the method and replace it with our own method that will retrieve Employee details from the Northwind database. The code will look similar to the following:
C#
using System;
using System.Collections.Generic;
using System.Web.Services;
using System.Web.Script.Services;
using System.Data.SqlClient;
using System.Data;

///<summary>
/// Summary description for EmployeeList
///</summary>
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
// To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
[System.Web.Script.Services.ScriptService]
public class EmployeeList : System.Web.Services.WebService {

    public EmployeeList () {

        //Uncomment the following line if using designed components
        //InitializeComponent();
    }

    [ScriptMethod(UseHttpGet = false, ResponseFormat = ResponseFormat.Json)]
    [WebMethod]
    public List<Employee> GetEmployees()
    {
        string nwConn = System.Configuration.ConfigurationManager.ConnectionStrings["NorthwindConnectionString"].ConnectionString;
        var empList = new List<Employee>();
        using (SqlConnection conn = new SqlConnection(nwConn))
        {
            const string sql = @"SELECT TOP 10 FirstName, LastName, Title, BirthDate FROM Employees";
            conn.Open();
            using (SqlCommand cmd = new SqlCommand(sql, conn))
            {
                SqlDataReader dr = cmd.ExecuteReader(
                    CommandBehavior.CloseConnection);
                if (dr != null)
                    while (dr.Read())
                    {
                        var emp = new Employee
                        {
                            FirstName = dr.GetString(0),
                            LastName = dr.GetString(1),
                            Title = dr.GetString(2),
                            BirthDate = dr.GetDateTime(3)
                        };
                        empList.Add(emp);
                    }
                return empList;
            }
        }
    }

}

public class Employee
{
    public string FirstName { get; set; }
    public string LastName { get; set; }
    public string Title { get; set; }
    public DateTime BirthDate { get; set; }
}
VB.NET
Imports System.Web
Imports System.Web.Services
Imports System.Web.Services.Protocols
Imports System.Web.Script.Services
Imports System.Data.SqlClient
Imports System.Data

' To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
<System.Web.Script.Services.ScriptService()> _
<WebService(Namespace:="http://tempuri.org/")> _
<WebServiceBinding(ConformsTo:=WsiProfiles.BasicProfile1_1)> _
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Public Class EmployeeList
    Inherits System.Web.Services.WebService

    <ScriptMethod(UseHttpGet:=False, ResponseFormat:=ResponseFormat.Json), WebMethod()> _
    Public Function GetEmployees() As List(Of Employee)
        Dim nwConn As String = System.Configuration.ConfigurationManager.ConnectionStrings("NorthwindConnectionString").ConnectionString
        Dim empList = New List(Of Employee)()
        Using conn As New SqlConnection(nwConn)
            Const sql As String = "SELECT TOP 10 FirstName, LastName, Title, BirthDate FROM Employees"
            conn.Open()
            Using cmd As New SqlCommand(sql, conn)
                Dim dr As SqlDataReader = cmd.ExecuteReader(CommandBehavior.CloseConnection)
                If dr IsNot Nothing Then
                    Do While dr.Read()
                        Dim emp = New Employee With {.FirstName = dr.GetString(0), .LastName = dr.GetString(1), .Title = dr.GetString(2), .BirthDate = dr.GetDateTime(3)}
                        empList.Add(emp)
                    Loop
                End If
                Return empList
            End Using
        End Using
    End Function

End Class

Public Class Employee
    Private privateFirstName As String
    Public Property FirstName() As String
        Get
            Return privateFirstName
        End Get
        Set(ByVal value As String)
            privateFirstName = value
        End Set
    End Property
    Private privateLastName As String
    Public Property LastName() As String
        Get
            Return privateLastName
        End Get
        Set(ByVal value As String)
            privateLastName = value
        End Set
    End Property
    Private privateTitle As String
    Public Property Title() As String
        Get
            Return privateTitle
        End Get
        Set(ByVal value As String)
            privateTitle = value
        End Set
    End Property
    Private privateBirthDate As DateTime
    Public Property BirthDate() As DateTime
        Get
            Return privateBirthDate
        End Get
        Set(ByVal value As DateTime)
            privateBirthDate = value
        End Set
    End Property
End Class

As you can observe in the code above, we are instantiating a List<Employee> and then using the DataReader to populate the list. We then return this list to the calling function. A very important point to observe is that our method is decorated with the [ScriptMethod(UseHttpGet = false, ResponseFormat = ResponseFormat.Json)] which enables the response to be serialized as a JSON string, also making it AJAX friendly. Personally, I think this attribute is way cool since it enables my runtime to deliver  JSON objects, without me getting into any JSON transformation nitty-gritty’s.

The web.config file will have an entry for the connectionstring similar to the following:
 <connectionStrings>
    <add name="NorthwindConnectionString" connectionString="Data Source=(local);Initial Catalog=Northwind;Integrated Security=True"/>
 </connectionStrings>
With our webservice ready, our first approach will involve retrieving data using the $.ajax method and observe the shortcomings of JSON objects while expressing fields like Date.
Step 4: Go to your Default.aspx and add the following jQuery code to retrieve data from the ASP.NET WebService using $.ajax method
<head runat="server">
    <title>Access ASP.NET WebService using jQuery</title>

    <script src="Scripts/jquery-1.3.2.js" type="text/javascript"></script>

    <script type="text/javascript">
        $(document).ready(function() {
            $.ajax({
                type: "POST",
                url: "EmployeeList.asmx/GetEmployees",
                data: "{}",
                contentType: "application/json; charset=utf-8",
                dataType: "json",
                success: function(list) {
                    $("#Something").append("<ul id='bullets'></ul>");
                    for (i = 0; i < list.d.length; i++) {
                        $("#bullets").append("<li>" + list.d[i].FirstName
                        + " : " + list.d[i].LastName + " : " + list.d[i].BirthDate + "</li>");
                    }
                },
                error: function(e) {
                    $("#Something").html("There was an error retrieving records");
                }
            });


        });
    </script>

</head>
<body>
    <form id="form1" runat="server">
    <div id="Something">

    </div>
    </form>
</body>
</html>

On running your application, you will get an output similar to the following:

Unformatted_Date

 As you can observe in the screenshot, the dates are not being handled well in JSON. The DateTime is serialized as an escaped JavaScript Date initializer - /Date(-124003800000)/. Dave Ward has explained this behavior quite well on his blog. You can also find some information on this behavior at schotime’s blog, the creator of the jMSAjax plug-in.
Note: To call a remote webservice, check this technique described by Jason
Resolving the JSON Date formatting

Enter the jMSAjax plug-in! The jMSAjax plug-in adds additional capabilities to the existing $.ajax to support ASP.NET Date formatting and resolve other shortcomings. It also does not require you to access the ‘d’ property (like we did while using $.ajax) to access data. Additional advantages are listed here.
To use this plug-in, first download the jMSAjax plug-in over here. Then add a reference to this file in the <head> section of your page. Here’s how to use the jMSAjax plug-in to access a JSON Serialized List<> returning Date objects.
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Access ASP.NET WebService using jQuery</title>

    <script src="Scripts/jquery-1.3.2.js" type="text/javascript"></script>
    <script src="Scripts/jquery.jmsajax.js" type="text/javascript"></script>

    <script type="text/javascript">
        $(document).ready(function() {

            $.jmsajax({
                url: "EmployeeList.asmx",
                method: "GetEmployees",
                dataType: "msjson",
                success: function(list) {
                    $("#Something").append("<br/><ul id='bullets'></ul>");
                    for (i = 0; i < list.length; i++) {
                        $("#bullets").append("<li>" + list[i].FirstName
                        + " : " + list[i].LastName + " : " + list[i].BirthDate + "</li>");
                    }
                },
                error: function(e) {
                    $("#Something").html("There was an error retreiving records");
                }
            });
        });
    </script>

</head>
<body>
    <form id="form1" runat="server">
    <div id="Something">

    </div>
    </form>
</body>
</html>

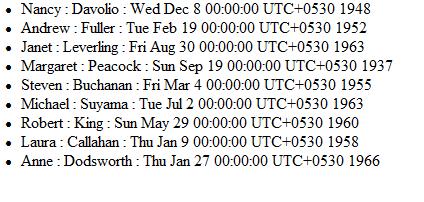

The output of the application is shown below.

Formatted_Date_UsingjMSAjax_Plugin

As you can observe, the dates returned by JSON are well formatted now! Way cool and a great plug-in by Schotime!
I hope this article was useful and I thank you for viewing it. The entire source code of this article can be downloaded from here
Give a +1 to this article if you think it was well written. Thanks!
