Silverlight 3 and RIA Services - Part I

RIA Services is a new offering from Microsoft that aims to simplify web n-tier architecture. The official wording from Microsoft is:
“Microsoft .NET RIA Services simplifies the traditional n-tier application pattern by bringing together the ASP.NET and Silverlight platforms. The RIA Services provides a pattern to write application logic that runs on the mid-tier and controls access to data for queries, changes and custom operations. It also provides end-to-end support for common tasks such as datavalidation, authentication and roles by integrating with Silverlight components on the client and ASP.NET on the mid-tier.”
The benefit of using RIA Services is felt when you’re using Silverlight 3 that interacts heavily with a database. All of your CRUD (Create, Read, Update and Delete) work is made easier than before. Part one of this article takes you through creating a Silverlight 3 web application and displaying data from the database. Part two will show you how to update, insert and delete data.
Before beginning you must install the latest RIA Services package from Microsoft. As of writing this the July 2009 version is the latest version. You can download it from here. I recommend that you also download the accompanying PDF, which provides a lot of detail, and plenty of good code samples.

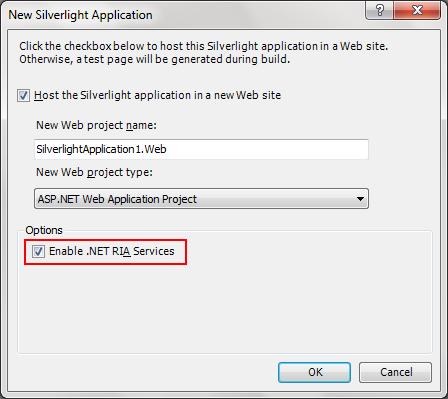

To begin with open Visual Studio 2008 and choose File > New > Project > Silverlight > Silverlight Application. A New Silverlight Application dialog will appear asking about the web application tied to this project. At the bottom of the dialog is a new section called Enable .NET RIA Services. Tick this box to enable RIA Services for the Silverlight project:

New_Silverlight_Application

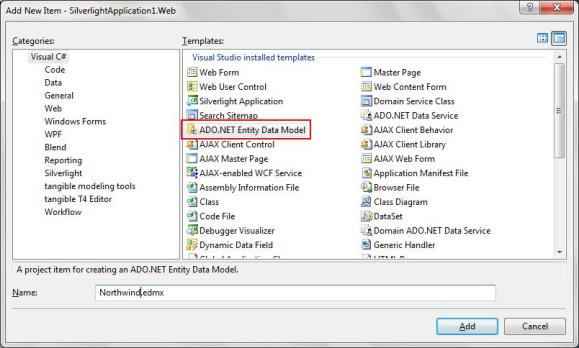

Open the web application and add a new ADO.NET Entity Data Model file to your project and name it Northwind.edmx. This example will connect up to the Northwind database. You can download it from here.

Add_New_Item

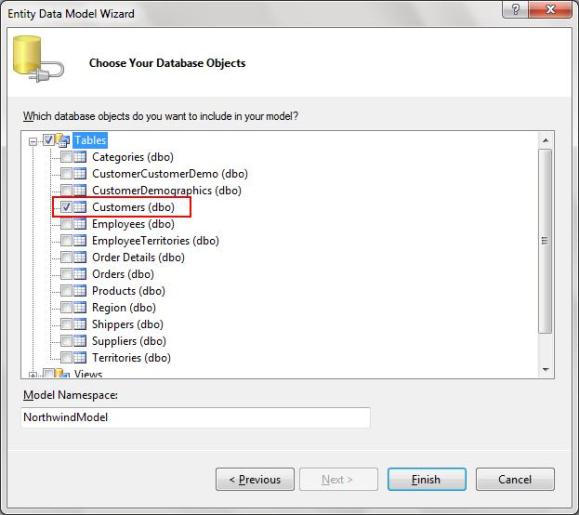

Connect to the Northwind database and select the Customers table from the Choose Your Database Objects dialog:

Entity_Data_Model_Wizard

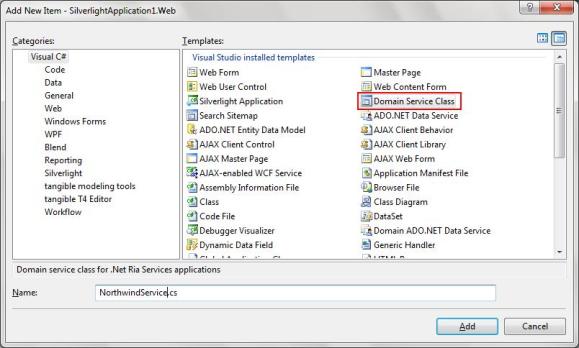

Click Finish when you’re done. Now that you’ve added your Customer object you must build your project. This is a must because the next step we will be adding a Domain Service Class file to the project, and it needs to discover the Customers object you just added. The next step is to right click on the web application and choose Add > New Item > Domain Service Class.

Domain_Service_Class

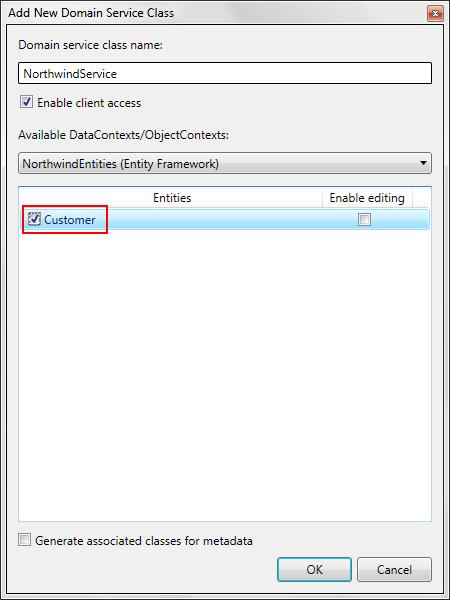

The domain service class is a new file that is specifically for RIA Services. Name the file NorthwindService and click Add. The Add New Domain Service Class dialog appears. Select the Customer object and click OK:

Add_New_Domain

The file is created. The first thing you’ll notice is that class has been decorated with the EnableClientAccess attribute. This is required for Silverlight to be able to consume the service. A default method called GetCustomers has been created for you:

C#

public IQueryable<Customer> GetCustomers()
{
return this.Context.Customers;
}

VB.NET

Public Function GetCustomers() As IQueryable(Of Customer)
Return Me.Context.Customers
End Function

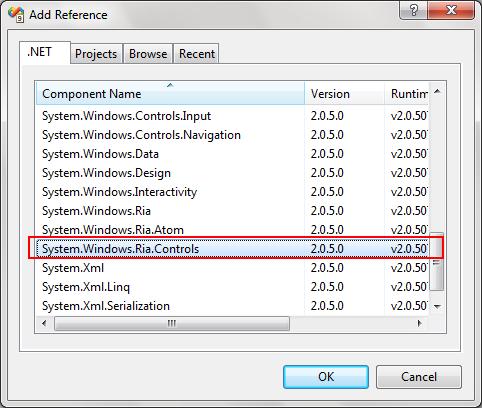

This is all that’s required for the web application. Open up the Silverlight application and add a reference to the System.Windows.Ria.Controls assembly:

Add_Reference

This reference is required because I am going to use a new control that is part of the RIA services installation called the DomainDataSource control. I think of this control as being similar to the ASP.NET ObjectDataSource. Add the following xaml to the MainPage.xaml file:

<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="SilverlightApplication1.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:web="clr-namespace:SilverlightApplication1.Web"
    xmlns:riaControls="clr-namespace:System.Windows.Controls;assembly=System.Windows.Ria.Controls"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480">
 <Grid x:Name="LayoutRoot">
        <riaControls:DomainDataSource QueryName="GetCustomers"
                                  AutoLoad="True"
                                  x:Name="dds">
            <riaControls:DomainDataSource.DomainContext>
                <web:NorthwindContext />
            </riaControls:DomainDataSource.DomainContext>
        </riaControls:DomainDataSource>

        <data:DataGrid ItemsSource="{Binding Data, ElementName=dds}">
        </data:DataGrid>
    </Grid>
</UserControl>

The first step is to tell Silverlight that you’re using a control in the System.Windows.Ria.Controls assembly:

xmlns:riaControls="clr-namespace:System.Windows.Controls;assembly=System.Windows.Ria.Controls"

Next add the DomainDataSource control and set the QueryName property to the name of the method, GetCustomers, in the domain service class. AutoLoad must be set to True for the data to be loaded automatically. Finally I am using Silverlight attached properties to set the DomainContext for the control to the NorthwindContext:

<riaControls:DomainDataSource.DomainContext>
<web:NorthwindContext />
</riaControls:DomainDataSource.DomainContext>

The NorthwindContext class is an object which is generated each time the project is compiled. To view this class, select the Silverlight project and show all the files. A Generated_Code folder has been created because this project is using RIA Services. Opening that folder you will see a file called SilverlightApplication1.Web.g.cs. In this file is the NorthwindContext class which implements the DomainContext class. The DomainContext object provides full access to all the functionality of the domain service:

Silverlight_Application


If you run the project you’ll see the data is displayed to the user in the DataGrid control. All of this has been achieved without having to write any additional code in the code behind file. The whole model of RIA Services is big and this article hopefully showed you how to use this great technology by getting a business application up and running quickly without having to write allot of code. In the next article I’ll show you how to update, insert and delete data. [Update]: The second part of this can be read over here Silverlight and RIA Services - Part II

The entire source code of this article can be downloaded from here
