Data Driven Application Development using WCF and Silverlight 3.0 User Controls

Posted by: Mahesh Sabnis , on 11/30/2009, in Category Silverlight 2, 3, 4 and 5
Views: 20785
Abstract: A few days ago, I was discussing with one of my techie friends about Silverlight 3.0 user controls and loading these controls on demand for performing DB operations like insert, update and delete. During the discussion, he also insisted that these operations should be available based upon user authorization. I liked the idea and started working on it.
Data Driven Application Development using WCF and Silverlight 3.0 User Controls

A few days ago, I was discussing with one of my techie friends about Silverlight 3.0 user controls and loading these controls on demand for performing DB operations like insert, update and delete. During the discussion, he also insisted that these operations should be available based upon user authorization. I liked the idea and started working on it.
In this article we will see how user controls can be developed and how we can display them at runtime. Those who are using Silverlight 3.0 for DB operations know that we require a WCF service which will make calls to the database.
In this article, I have used Silverlight user controls. The reason behind it is that DML operations needs to be made available based upon authorization and user controls can be displayed on request.
Task 1: Creating WCF Service

Step 1:  Open VS2008, and create a blank solution, name it as ‘SILV3_PerformingDML’. To this solution add a new WCF Web Project template and name this as ‘WCF_DMLService’ as shown below:
AddNewProject_Web
Step 2: Write following ServiceContract, OperationContact and DataContract. ServiceContract defines methods for performing DML operations. These OperationContact accepts DataContract class as input parameters.
C#
using System.Runtime.Serialization;
using System.ServiceModel;

namespace WCF_DMLService
{
    [ServiceContract]
    public interface IDMLService
    {
        [OperationContract]
        int CreateEmployee(clsEmployee objEmp);
        [OperationContract]
        int UpdateEmployee(clsEmployee objEmp);
        [OperationContract]
        int DeleteEmployeeByEmpNo(clsEmployee objEmp);
        [OperationContract]
        clsEmployee[] GetAllEmployee();
    }

    [DataContract]
    public class clsEmployee
    {
        [DataMember]
        public int EmpNo { get; set; }
        [DataMember]
        public string EmpName { get; set; }
        [DataMember]
        public int Salary { get; set; }
        [DataMember]
        public int DeptNo { get; set; }
    }
}

VB.NET
Imports System.Runtime.Serialization
Imports System.ServiceModel

Namespace WCF_DMLService
      <ServiceContract> _
      Public Interface IDMLService
            <OperationContract> _
            Function CreateEmployee(ByVal objEmp As clsEmployee) As Integer
            <OperationContract> _
            Function UpdateEmployee(ByVal objEmp As clsEmployee) As Integer
            <OperationContract> _
            Function DeleteEmployeeByEmpNo(ByVal objEmp As clsEmployee) As Integer
            <OperationContract> _
            Function GetAllEmployee() As clsEmployee()
      End Interface

      <DataContract> _
      Public Class clsEmployee
            Private privateEmpNo As Integer
            <DataMember> _
            Public Property EmpNo() As Integer
                  Get
                        Return privateEmpNo
                  End Get
                  Set(ByVal value As Integer)
                        privateEmpNo = value
                  End Set
            End Property
            Private privateEmpName As String
            <DataMember> _
            Public Property EmpName() As String
                  Get
                        Return privateEmpName
                  End Get
                  Set(ByVal value As String)
                        privateEmpName = value
                  End Set
            End Property
            Private privateSalary As Integer
            <DataMember> _
            Public Property Salary() As Integer
                  Get
                        Return privateSalary
                  End Get
                  Set(ByVal value As Integer)
                        privateSalary = value
                  End Set
            End Property
            Private privateDeptNo As Integer
            <DataMember> _
            Public Property DeptNo() As Integer
                  Get
                        Return privateDeptNo
                  End Get
                  Set(ByVal value As Integer)
                        privateDeptNo = value
                  End Set
            End Property
      End Class
End Namespace

Step 3: Implement the service contract interface in the service class ‘CDMLService’.
C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.Text;
using System.Data;
using System.Data.SqlClient;

namespace WCF_DMLService
{
    public class CDMLService : IDMLService
    {
        SqlConnection Conn;
        SqlCommand Cmd;

        #region IDMLService Members

        public int CreateEmployee(clsEmployee objEmp)
        {
            Conn = new SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI");
            Cmd = new SqlCommand();
            Conn.Open();

            Cmd.Connection = Conn;
            Cmd.CommandText = "Insert into Employee Values(@EmpNo,@EmpName,@Salary,@DeptNo)";
            Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo);
            Cmd.Parameters.AddWithValue("@EmpName", objEmp.EmpName);
            Cmd.Parameters.AddWithValue("@Salary", objEmp.Salary);
            Cmd.Parameters.AddWithValue("@DeptNo", objEmp.DeptNo);

            int Inserted = Cmd.ExecuteNonQuery();

            if (Inserted > 0)
            {
                Inserted = 1;
            }
            else
            {
                Inserted = 0;
            }

            Conn.Close();
            Cmd.Dispose();
            Conn.Dispose();


            return Inserted;
        }



        public int DeleteEmployeeByEmpNo(clsEmployee objEmp)
        {
            Conn = new SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI");
            Cmd = new SqlCommand();
            Conn.Open();

            Cmd.Connection = Conn;
            Cmd.CommandText = "Delete from Employee where EmpNo=@EmpNo";
            Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo);

            int Deleted = Cmd.ExecuteNonQuery();
            if (Deleted > 0)
            {
                Deleted = 1;
            }
            else
            {
                Deleted = 0;
            }
            Conn.Close();
            Cmd.Dispose();
            Conn.Dispose();
            return Deleted;
        }

        public clsEmployee[] GetAllEmployee()
        {
            Conn = new SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI");
            Cmd = new SqlCommand();
            Conn.Open();

            Cmd.Connection = Conn;
            Cmd.CommandText = "Select * from Employee";
            SqlDataReader Reader = Cmd.ExecuteReader();
            int i = 0;

            DataTable DtEmp = new DataTable();
            DtEmp.Load(Reader);
            clsEmployee[] arrEmp = new clsEmployee[DtEmp.Rows.Count];

            foreach (DataRow Dr in DtEmp.Rows)
            {
                arrEmp[i] = new clsEmployee();
                arrEmp[i].EmpNo = Convert.ToInt32(Dr["EmpNo"]);
                arrEmp[i].EmpName = Dr["EmpName"].ToString();
                arrEmp[i].DeptNo = Convert.ToInt32(Dr["DeptNo"]);
                arrEmp[i].Salary = Convert.ToInt32(Dr["Salary"]);
                i = i + 1;
            }
            Conn.Close();
            Cmd.Dispose();
            Conn.Dispose();
            return arrEmp;

        }

        #endregion



        public int UpdateEmployee(clsEmployee objEmp)
        {
            Conn = new SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI");
            Cmd = new SqlCommand();
            Conn.Open();

            Cmd.Connection = Conn;
            Cmd.CommandText = "Update Employee Set EmpName=@EmpName,Salary=@Salary,DeptNo=@DeptNo where EmpNo=@EmpNo";
            Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo);
            Cmd.Parameters.AddWithValue("@EmpName", objEmp.EmpName);
            Cmd.Parameters.AddWithValue("@Salary", objEmp.Salary);
            Cmd.Parameters.AddWithValue("@DeptNo", objEmp.DeptNo);

            int Updated = Cmd.ExecuteNonQuery();

            if (Updated > 0)
            {
                Updated = 1;
            }
            else
            {
                Updated = 0;
            }

            Conn.Close();
            Cmd.Dispose();
            Conn.Dispose();
            return Updated;
        }

    }
}

VB.NET
Imports System
Imports System.Collections.Generic
Imports System.Linq
Imports System.Runtime.Serialization
Imports System.ServiceModel
Imports System.Text
Imports System.Data
Imports System.Data.SqlClient

Namespace WCF_DMLService
      Public Class CDMLService
            Inherits IDMLService
            Private Conn As SqlConnection
            Private Cmd As SqlCommand

            #Region "IDMLService Members"

      Public Function CreateEmployee(ByVal objEmp As clsEmployee) As Integer
                  Conn = New SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI")
                  Cmd = New SqlCommand()
                  Conn.Open()

                  Cmd.Connection = Conn
                  Cmd.CommandText = "Insert into Employee Values(@EmpNo,@EmpName,@Salary,@DeptNo)"
                  Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo)
                  Cmd.Parameters.AddWithValue("@EmpName", objEmp.EmpName)
                  Cmd.Parameters.AddWithValue("@Salary", objEmp.Salary)
                  Cmd.Parameters.AddWithValue("@DeptNo", objEmp.DeptNo)

                  Dim Inserted As Integer = Cmd.ExecuteNonQuery()

                  If Inserted > 0 Then
                        Inserted = 1
                  Else
                        Inserted = 0
                  End If

                  Conn.Close()
                  Cmd.Dispose()
                  Conn.Dispose()


                  Return Inserted

End Function
Public Function DeleteEmployeeByEmpNo(ByVal objEmp As clsEmployee) As Integer
                  Conn = New SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI")
                  Cmd = New SqlCommand()
                  Conn.Open()

                  Cmd.Connection = Conn
                  Cmd.CommandText = "Delete from Employee where EmpNo=@EmpNo"
                  Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo)

                  Dim Deleted As Integer = Cmd.ExecuteNonQuery()
                  If Deleted > 0 Then
                        Deleted = 1
                  Else
                        Deleted = 0
                  End If
                  Conn.Close()
                  Cmd.Dispose()
                  Conn.Dispose()
                  Return Deleted
End Function

            Public Function GetAllEmployee() As clsEmployee()
                  Conn = New SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI")
                  Cmd = New SqlCommand()
                  Conn.Open()

                  Cmd.Connection = Conn
                  Cmd.CommandText = "Select * from Employee"
                  Dim Reader As SqlDataReader = Cmd.ExecuteReader()
                  Dim i As Integer = 0

                  Dim DtEmp As New DataTable()
                  DtEmp.Load(Reader)
                  Dim arrEmp(DtEmp.Rows.Count - 1) As clsEmployee

                  For Each Dr As DataRow In DtEmp.Rows
                        arrEmp(i) = New clsEmployee()
                        arrEmp(i).EmpNo = Convert.ToInt32(Dr("EmpNo"))
                        arrEmp(i).EmpName = Dr("EmpName").ToString()
                        arrEmp(i).DeptNo = Convert.ToInt32(Dr("DeptNo"))
                        arrEmp(i).Salary = Convert.ToInt32(Dr("Salary"))
                        i = i + 1
                  Next Dr
                  Conn.Close()
                  Cmd.Dispose()
                  Conn.Dispose()
                  Return arrEmp

            End Function

            #End Region

             Public Function UpdateEmployee(ByVal objEmp As clsEmployee) As Integer
                  Conn = New SqlConnection("Data Source=.;Initial Catalog=Company;Integrated Security=SSPI")
                  Cmd = New SqlCommand()
                  Conn.Open()

                  Cmd.Connection = Conn
                  Cmd.CommandText = "Update Employee Set EmpName=@EmpName,Salary=@Salary,DeptNo=@DeptNo where EmpNo=@EmpNo"
                  Cmd.Parameters.AddWithValue("@EmpNo", objEmp.EmpNo)
                  Cmd.Parameters.AddWithValue("@EmpName", objEmp.EmpName)
                  Cmd.Parameters.AddWithValue("@Salary", objEmp.Salary)
                  Cmd.Parameters.AddWithValue("@DeptNo", objEmp.DeptNo)

                  Dim Updated As Integer = Cmd.ExecuteNonQuery()

                  If Updated > 0 Then
                        Updated = 1
                  Else
                        Updated = 0
                  End If

                  Conn.Close()
                  Cmd.Dispose()
                  Conn.Dispose()
                  Return Updated
            End Function

      End Class





End Namespace






Step 4: Right click on the ‘CDMLService.svc’ and select ‘View Markup’ and write the following:
<%@ ServiceHost Language="C#" Debug="true" Service="WCF_DMLService.CDMLService"
 CodeBehind="CDMLService.svc.cs" %>

Step 5: Make modifications in the ‘Web.Config’ file as shown below:
<system.serviceModel>
<services>
      <service behaviorConfiguration="ServBehave" name="WCF_DMLService.CDMLService">
            <endpoint address="" binding="basicHttpBinding" contract="WCF_DMLService.IDMLService">
            </endpoint>
      </service>
</services>
<behaviors>
      <serviceBehaviors>
            <behavior name="ServBehave">
                  <serviceMetadata httpGetEnabled="true"/>
                  <serviceDebug includeExceptionDetailInFaults="false"/>
            </behavior>
      </serviceBehaviors>
</behaviors>
</system.serviceModel>

Step 6: Build the service and publish it on the IIS available on your machine or probably on the server to which you are having access.
Once you publish it on web server, browse to the Active Directory and browse the ‘CDMLService.svc’ file. You should get the service page.
Task 2: Creating Silverlight 3.0 Client application

In this task we will create a Silverlight 3.0 application. This will act as a consumer of WCF service
Step 1: Right-click on the solution and add a new Silverlight project, name this as ‘SILV3-DMLClientApplication’. You will get ‘MainPage.xaml’ > rename this as ‘HomePage.xaml’
Step 2: Open App.Xaml.cs file and change the ‘Application_Startup’ method as shown below:
C#
private void Application_Startup(object sender, StartupEventArgs e)
{
   this.RootVisual = new HomePage();
}

VB.NET
Private Sub Application_Startup(ByVal sender As Object, ByVal e As StartupEventArgs)
   Me.RootVisual = New HomePage()
End Sub

Step 3: Open HomePage.xaml and write the following xaml code:
<UserControl xmlns:dataFormToolkit="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.DataForm.Toolkit"  x:Class="SILV3_DMLClientApplication.HomePage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="700" d:DesignHeight="600">
    <Grid x:Name="LayoutRoot" Height="590" Width="690">
        <Grid.RowDefinitions>
            <RowDefinition Height="100"></RowDefinition>
            <RowDefinition Height="590"></RowDefinition>
        </Grid.RowDefinitions>
        <StackPanel
            Orientation="Horizontal"
            Grid.Row="0" Height="98"
            Background="LightGray" Width="688"
             Margin="1,1,2,1">
            <TextBlock Width="60"></TextBlock>
            <Button x:Name="btnLoadInsert" Height="80" Width="80" Content="Get Insert" Click="btnLoadInsert_Click"></Button>
            <TextBlock Width="50"></TextBlock>
            <Button x:Name="btnLoadUpdate" Height="80" Width="80" Content="Get Update" Click="btnLoadUpdate_Click"></Button>
            <TextBlock Width="50"></TextBlock>
            <Button x:Name="btnLoadDelete" Height="80" Width="80" Content="Get Delete" Click="btnLoadDelete_Click"></Button>
            <TextBlock Width="50"></TextBlock>
            <Button x:Name="btnLoadGetAll" Height="80" Width="80" Content="Get All" Click="btnLoadGetAll_Click"></Button>
            <TextBlock Width="50"></TextBlock>
            <Button x:Name="btnClearAll" Height="80" Width="80" Content="Clear All" Click="btnClearAll_Click"></Button>
        </StackPanel>

        <Canvas x:Name="canvMain" Grid.Row="1" Height="590" Width="688" Background="LightCyan">

        </Canvas>

    </Grid>
</UserControl>

Note: Please ignore Click event at this moment we will use it afterwards
Step 4: In the Silverlight project add the service reference to the WCF service published on IIS.
Step 5: In the Silverlight project > right click > select Add New Item > select Silverlight user control and name it as ‘InsertPage.xaml’
AddNewItem_VisualC
Add the following Xaml code to it:
<UserControl x:Class="SILV3_DMLClientApplication.InsertPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Width="400" Height="400">
    <Grid x:Name="LayoutRoot" Background="LightCyan"
          Width="400" Height="400"  >
        <Grid.RowDefinitions>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="80"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="200"></ColumnDefinition>
            <ColumnDefinition Width="200"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <TextBlock Grid.Column="0" Grid.Row="0" Text="EmpNo"></TextBlock>
        <TextBlock Grid.Column="0" Grid.Row="1" Text="EmpName"></TextBlock>
        <TextBlock Grid.Column="0" Grid.Row="2" Text="Salary"></TextBlock>
        <TextBlock Grid.Column="0" Grid.Row="3" Text="DeptNo"></TextBlock>
        <TextBox x:Name="txtEmpNo" Grid.Column="1" Grid.Row="0"></TextBox>
        <TextBox x:Name="txtEmpName" Grid.Column="1" Grid.Row="1"></TextBox>
        <TextBox x:Name="txtSalary" Grid.Column="1" Grid.Row="2"></TextBox>
        <TextBox x:Name="txtDeptNo" Grid.Column="1" Grid.Row="3"></TextBox>
        <Button x:Name="btnCancel" Grid.Column="0" Grid.Row="4"
                Content="Cancel" Click="btnCancel_Click"></Button>
        <Button x:Name="btnInsert" Grid.Column="1" Grid.Row="4"
                Content="Save" Click="btnInsert_Click"></Button>

    </Grid>
</UserControl>


The above user control will be used for performing insert operation.
Step 6: In the InsertPage.xaml.cs write the following code as shown below. This code will call the Insert method from the WCF service:
C#
namespace SILV3_DMLClientApplication
{
    public partial class InsertPage : UserControl
    {

        MyRef.DMLServiceClient Proxy;
        MyRef.clsEmployee objEmp;


        public InsertPage()
        {
            InitializeComponent();
        }

        private void btnCancel_Click(object sender, RoutedEventArgs e)
        {
            foreach (UIElement Element in LayoutRoot.Children)
            {
                if (Element.GetType() == typeof(System.Windows.Controls.TextBox))
                {
                    ((TextBox)Element).Text = "";
                }
            }

        }

        private void btnInsert_Click(object sender, RoutedEventArgs e)
        {
            Proxy = new SILV3_DMLClientApplication.MyRef.DMLServiceClient();
            objEmp = new SILV3_DMLClientApplication.MyRef.clsEmployee();

            objEmp.EmpNo = Convert.ToInt32(txtEmpNo.Text);
            objEmp.EmpName = txtEmpName.Text;
            objEmp.Salary = Convert.ToInt32(txtSalary.Text);
            objEmp.DeptNo = Convert.ToInt32(txtDeptNo.Text);

            Proxy.CreateEmployeeCompleted += new EventHandler<SILV3_DMLClientApplication.MyRef.CreateEmployeeCompletedEventArgs>(Proxy_CreateEmployeeCompleted);
            Proxy.CreateEmployeeAsync(objEmp);

        }

        void Proxy_CreateEmployeeCompleted(object sender, SILV3_DMLClientApplication.MyRef.CreateEmployeeCompletedEventArgs e)
        {
            if ((int?)e.Result != null)
            {
                if (e.Result == 1)
                {
                    HtmlPage.Window.Alert("Record Inserted Successfully");
                }
            }
        }
    }
}

VB.NET
Namespace SILV3_DMLClientApplication
      Partial Public Class InsertPage
            Inherits UserControl

            Private Proxy As MyRef.DMLServiceClient
            Private objEmp As MyRef.clsEmployee

            Public Sub New()
                  InitializeComponent()
            End Sub

            Private Sub btnCancel_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
                  For Each Element As UIElement In LayoutRoot.Children
                        If Element.GetType() Is GetType(System.Windows.Controls.TextBox) Then
                              CType(Element, TextBox).Text = ""
                        End If
                  Next Element

            End Sub

            Private Sub btnInsert_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
                  Proxy = New SILV3_DMLClientApplication.MyRef.DMLServiceClient()
                  objEmp = New SILV3_DMLClientApplication.MyRef.clsEmployee()

                  objEmp.EmpNo = Convert.ToInt32(txtEmpNo.Text)
                  objEmp.EmpName = txtEmpName.Text
                  objEmp.Salary = Convert.ToInt32(txtSalary.Text)
                  objEmp.DeptNo = Convert.ToInt32(txtDeptNo.Text)

                  AddHandler Proxy.CreateEmployeeCompleted, AddressOf Proxy_CreateEmployeeCompleted
                  Proxy.CreateEmployeeAsync(objEmp)

            End Sub

            Private Sub Proxy_CreateEmployeeCompleted(ByVal sender As Object, ByVal e As SILV3_DMLClientApplication.MyRef.CreateEmployeeCompletedEventArgs)
                  If CType(e.Result, Integer?) IsNot Nothing Then
                        If e.Result = 1 Then
                              HtmlPage.Window.Alert("Record Inserted Successfully")
                        End If
                  End If
            End Sub
      End Class
End Namespace
In the above code, btnCancel_click will clear all textboxes in the control.
Step 7: Open HomePage.Xaml.cs, and write the following code:
C#
private void btnLoadInsert_Click(object sender, RoutedEventArgs e)
{
    canvMain.Children.Clear();
    InsertPage ctrlInsert = new InsertPage();
    canvMain.Children.Add(ctrlInsert);
}
VB.NET
private void btnLoadInsert_Click(object sender, RoutedEventArgs e)
{
    canvMain.Children.Clear();
    InsertPage ctrlInsert = new InsertPage();
    canvMain.Children.Add(ctrlInsert);
}
The code creates object of ‘InsertPage’ user control and adds it as a children of the canvas.

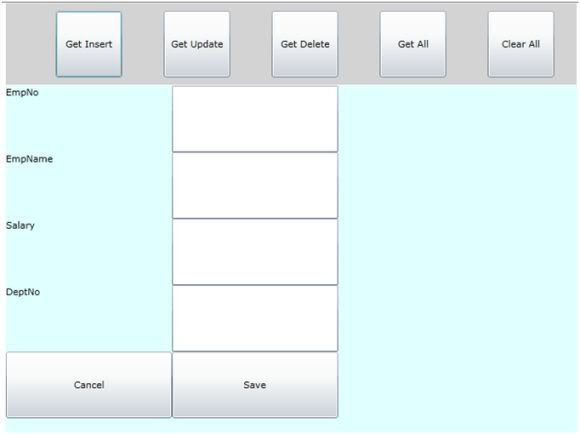

Step 8: Run the project and click on ‘Get Insert’ button, you will get the following output:
GetInsertButton

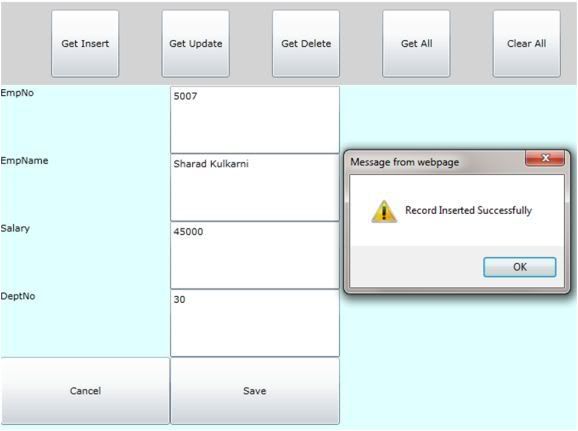

Step 9: Insert values in textboxes and click on the ‘Save’ button. You will get the following output:
SaveButton
Close the browser.
Step 10: In the Silverlight project add a new user control, name it as ‘GetAllPage.xaml’. Add the following Xaml code to it:
<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="SILV3_DMLClientApplication.GetAllPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Width="400" Height="300" Loaded="UserControl_Loaded">
    <Grid x:Name="LayoutRoot" Background="White">
        <data:DataGrid x:Name="dgEmp"
                            AutoGenerateColumns="False" >
            <data:DataGrid.Columns>
                <data:DataGridTextColumn Binding="{Binding EmpNo}" Header="EmpNo" Width="80"></data:DataGridTextColumn>
                <data:DataGridTextColumn Binding="{Binding EmpName}" Header="EmpName" Width="150"></data:DataGridTextColumn>
                <data:DataGridTextColumn Binding="{Binding Salary}" Header="Salary" Width="80"></data:DataGridTextColumn>
                <data:DataGridTextColumn Binding="{Binding DeptNo}" Header="DeptNo" Width="80"></data:DataGridTextColumn>
            </data:DataGrid.Columns>
        </data:DataGrid>

        <data:DataPager x:Name="dtPager" DisplayMode="FirstLastPreviousNextNumeric"
                AutoEllipsis="True" PageSize="3"
                Source="{Binding ItemsSource,ElementName=dgEmp}" IsEnabled="True">
        </data:DataPager>
    </Grid>
</UserControl>

The ‘DataPager’ element is used to specify the number of rows displayed in the datagrid.
Step 11: In the ‘GetAllPage.Xaml.cs’ or .vb add the following code:
C#
namespace SILV3_DMLClientApplication
{
    public partial class GetAllPage : UserControl
    {

        MyRef.DMLServiceClient Proxy;

        ObservableCollection<MyRef.clsEmployee> _colEmp;

        public GetAllPage()
        {
            InitializeComponent();
        }

        private void UserControl_Loaded(object sender, RoutedEventArgs e)
        {
            Proxy = new SILV3_DMLClientApplication.MyRef.DMLServiceClient();
            Proxy.GetAllEmployeeCompleted += new EventHandler<SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs>(Proxy_GetAllEmployeeCompleted);
            Proxy.GetAllEmployeeAsync();
        }

        void Proxy_GetAllEmployeeCompleted(object sender, SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs e)
        {
            if (e.Result != null)
            {
                _colEmp = e.Result;

                dgEmp.ItemsSource = new PagedCollectionView(e.Result);
                //dgEmp.ItemsSource = _colEmp;

            }

        }
    }
}
VB.NET
Namespace SILV3_DMLClientApplication
      Partial Public Class GetAllPage
            Inherits UserControl

            Private Proxy As MyRef.DMLServiceClient

            Private _colEmp As ObservableCollection(Of MyRef.clsEmployee)

            Public Sub New()
                  InitializeComponent()
            End Sub

            Private Sub UserControl_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs)
                  Proxy = New SILV3_DMLClientApplication.MyRef.DMLServiceClient()
                  AddHandler Proxy.GetAllEmployeeCompleted, AddressOf Proxy_GetAllEmployeeCompleted
                  Proxy.GetAllEmployeeAsync()
            End Sub

            Private Sub Proxy_GetAllEmployeeCompleted(ByVal sender As Object, ByVal e As SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs)
                  If e.Result IsNot Nothing Then
                        _colEmp = e.Result

                        dgEmp.ItemsSource = New PagedCollectionView(e.Result)
                        'dgEmp.ItemsSource = _colEmp;

                  End If

            End Sub
      End Class
End Namespace
The ‘PagedCollectionView’ class is used for pagination.
Step 12: Open ‘HomePage.Xaml.cs’ and write the following code ‘btnLoadGetAll_Click’:
C#
private void btnLoadGetAll_Click(object sender, RoutedEventArgs e)
{
    canvMain.Children.Clear();
    GetAllPage ctrlgetAllPage = new GetAllPage();
    canvMain.Children.Add(ctrlgetAllPage);
}

VB.NET
Private Sub btnLoadGetAll_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
      canvMain.Children.Clear()
      Dim ctrlgetAllPage As New GetAllPage()
      canvMain.Children.Add(ctrlgetAllPage)
End Sub
Step 13: Run the Silverlight application and click on the ‘Get All’ button. You will get the following output:
GetAll
Stop the application.
Step 14: To the Silverlight project, add a new Silverlight user control and name it as ‘UpdatePage.xaml’. Write the following xaml code:
<UserControl xmlns:dataFormToolkit="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.DataForm.Toolkit"  x:Class="SILV3_DMLClientApplication.UpdatePage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Width="600" Height="590" Loaded="UserControl_Loaded">
    <Grid x:Name="LayoutRoot" Background="LightCyan" Width="598" Height="590">
        <dataFormToolkit:DataForm x:Name="dfUpdateEmp"
              Margin="1,1,10,100"  AutoGenerateFields="True"
              Height="450" Width="580" AutoEdit="False"
              CommandButtonsVisibility="Navigation,Edit,Commit"  >

        </dataFormToolkit:DataForm>
    </Grid>
</UserControl>

One of the most important things in the above xaml code is the ‘CommandButtonVisibility’ property of the DataForm. This property will define only the ‘Navigation, Edit, Commit’ button.
Step 15: Add the following code in ‘UpdatePage.xaml.cs’:
C#
namespace SILV3_DMLClientApplication
{
    public partial class UpdatePage : UserControl
    {

        MyRef.DMLServiceClient Proxy;

        ObservableCollection<MyRef.clsEmployee> _colEmp;

        public UpdatePage()
        {
            InitializeComponent();
            dfUpdateEmp.EditEnded += new EventHandler<DataFormEditEndedEventArgs>(dfUpdateEmp_EditEnded);
        }

        void dfUpdateEmp_EditEnded(object sender, DataFormEditEndedEventArgs e)
        {
            Proxy.UpdateEmployeeCompleted += new EventHandler<SILV3_DMLClientApplication.MyRef.UpdateEmployeeCompletedEventArgs>(Proxy_UpdateEmployeeCompleted);
            Proxy.UpdateEmployeeAsync((MyRef.clsEmployee)dfUpdateEmp.CurrentItem);

        }

        void Proxy_UpdateEmployeeCompleted(object sender, SILV3_DMLClientApplication.MyRef.UpdateEmployeeCompletedEventArgs e)
        {
            if ((int?)e.Result != null)
            {
                if (e.Result == 1)
                {
                    HtmlPage.Window.Alert("Record Updated Successfully");
                }
            }
        }

        private void UserControl_Loaded(object sender, RoutedEventArgs e)
        {
            Proxy = new SILV3_DMLClientApplication.MyRef.DMLServiceClient();
            Proxy.GetAllEmployeeCompleted += new EventHandler<SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs>(Proxy_GetAllEmployeeCompleted);
            Proxy.GetAllEmployeeAsync();

            //    dfUpdateEmp.CommandButtonsVisibility = DataFormCommandButtonsVisibility.All;

        }

        void Proxy_GetAllEmployeeCompleted(object sender, SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs e)
        {
            if (e.Result != null)
            {
                _colEmp = e.Result;
                dfUpdateEmp.ItemsSource = e.Result;
            }
        }
    }
}
VB.NET
Namespace SILV3_DMLClientApplication
      Partial Public Class UpdatePage
            Inherits UserControl

            Private Proxy As MyRef.DMLServiceClient

            Private _colEmp As ObservableCollection(Of MyRef.clsEmployee)

            Public Sub New()
                  InitializeComponent()
                  AddHandler dfUpdateEmp.EditEnded, AddressOf dfUpdateEmp_EditEnded
            End Sub

            Private Sub dfUpdateEmp_EditEnded(ByVal sender As Object, ByVal e As DataFormEditEndedEventArgs)
                  AddHandler Proxy.UpdateEmployeeCompleted, AddressOf Proxy_UpdateEmployeeCompleted
                  Proxy.UpdateEmployeeAsync(CType(dfUpdateEmp.CurrentItem, MyRef.clsEmployee))

            End Sub

            Private Sub Proxy_UpdateEmployeeCompleted(ByVal sender As Object, ByVal e As SILV3_DMLClientApplication.MyRef.UpdateEmployeeCompletedEventArgs)
                  If CType(e.Result, Integer?) IsNot Nothing Then
                        If e.Result = 1 Then
                              HtmlPage.Window.Alert("Record Updated Successfully")
                        End If
                  End If
            End Sub

            Private Sub UserControl_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs)
                  Proxy = New SILV3_DMLClientApplication.MyRef.DMLServiceClient()
                  AddHandler Proxy.GetAllEmployeeCompleted, AddressOf Proxy_GetAllEmployeeCompleted
                  Proxy.GetAllEmployeeAsync()

                  '    dfUpdateEmp.CommandButtonsVisibility = DataFormCommandButtonsVisibility.All;

            End Sub

            Private Sub Proxy_GetAllEmployeeCompleted(ByVal sender As Object, ByVal e As SILV3_DMLClientApplication.MyRef.GetAllEmployeeCompletedEventArgs)
                  If e.Result IsNot Nothing Then
                        _colEmp = e.Result
                        dfUpdateEmp.ItemsSource = e.Result
                  End If
            End Sub
      End Class
End Namespace

When this control is loaded, it will call the ‘GetAllAsync’ method which will load all the records. The ‘EditEnded’ is implemented to give call to the ‘UpdateEmployee’ method asynchronously.
Step 16: Open HomePage.xaml.cs and write the following code ‘btnLoadUpdate_Click’ method:
C#
private void btnLoadUpdate_Click(object sender, RoutedEventArgs e)
{
    canvMain.Children.Clear();
    UpdatePage ctrlUpdPage = new UpdatePage();
    canvMain.Children.Add(ctrlUpdPage);
}

VB.NET
Private Sub btnLoadUpdate_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
      canvMain.Children.Clear()
      Dim ctrlUpdPage As New UpdatePage()
      canvMain.Children.Add(ctrlUpdPage)
End Sub
The above code will create an object of ‘UpdatePage’ and add it in the canvas ‘canvMain’.
Step 17: Run the application and click on ‘Get Update’ button which will load the ‘UpdatePage’ user control as shown below:
GetUpdate
User can use the pager control and click on the edit button. When the textboxes are updated and the ‘OK’ button is clicked, the following output will be displayed:
Edit
One of the nice things here is that DataForm control provides facility for insert, update, delete and pagination. But most of the time, the user wants to design his own window for performing operation like insert, so the DataForm control can be more suitable for performing operations like update and delete.
Note: These User Controls can also be used by the navigation application template provided by Silverlight and also in RIA services.
Conclusion: Silverlight user control is one of the flexible mechanisms provided for developing isolated visuals and these can be loaded as and when required. The entire source code of this article can be downloaded over here
Give a +1 to this article if you think it was well written. Thanks!
Recommended Articles


Page copy protected against web site content infringement by Copyscape


User Feedback
Comment posted by DAVE on Monday, November 30, 2009 9:09 AM
the section  public class CDMLService : IDMLService for vb.net is still your C code.

Comment posted by Anup Hosur on Tuesday, December 1, 2009 6:27 PM
Nice article. U wrote VB.Net insert method in c#.
Comment posted by Carol on Wednesday, December 2, 2009 4:49 AM
Thanks Dave and Anup. The error has been rectified

Carol
Site Editor
Comment posted by Gregory F on Tuesday, December 22, 2009 6:15 PM
Awesome Article. Keep up the good my friend.
Comment posted by Gregory F on Wednesday, December 23, 2009 9:28 AM
Awesome Article. Keep up the good my friend.
Comment posted by Gregory F on Thursday, December 24, 2009 3:56 PM
Awesome Article. Keep up the good my friend.
Comment posted by Rajnish on Friday, January 15, 2010 12:30 AM
Thanks,

Great article, I like it very much.

Rajnish Sharma
Comment posted by Khan on Friday, April 30, 2010 11:36 AM
Thanks Mahesh for sharing this wonderful article. I am new to programming and i couldn't complete this project using steps you have described. could you please share source code or tell us where to put all that coding you have posted. thanks
Comment posted by Smart Home on Thursday, October 20, 2011 2:54 AM
Many thanks for this brilliant post! Many points have extremely useful. Hopefully you'll continue sharing your knowledge around.
<a href="http://www.smithmonitoring.com/smart-home-security.php">Smart Home</a>
Comment posted by Kansas City KS Home Security on Wednesday, January 11, 2012 10:45 AM
Thanks for this coding solution. This was helpful and what I have been looking for.

http://www.KansasCityKSHomeSecurity.com
Comment posted by Knoxville, TN security system reviews on Tuesday, April 10, 2012 10:23 AM
Mahesh, this posting really helped me. I have been looking for some help on this and found this at right time.

Samuel from http://www.localprice.com/knoxville-tn/home-security
Comment posted by suzi on Monday, September 3, 2012 9:27 AM
This is pretty nice method. Thanks for sharing.
Comment posted by Maria on Monday, September 3, 2012 9:28 AM
It seems to be a good method.
http://medicalbillingandcodingjobs.biz

Post your comment
Name:
E-mail: (Will not be displayed)
Comment:
Insert Cancel
