Windows Phone 7 (WP 7) – Download, Store and Play Media files from Isolated Storage

Posted by: Mahesh Sabnis , on 10/6/2010, in Category Windows Phone
Views: 77105
Abstract: In this article, I will be explaining how to do HTTP downloads using WP7 application. Once the content is downloaded, it can be stored in the isolated storage to be used later.
In this article, I will be explaining how to do HTTP downloads using WP7 application. Once the content is downloaded, it can be stored in the isolated storage to be used later.
Isolated storage is a data storage mechanism that provides isolation and safety by defining standardized ways of associating code with saved data. As far as programming with it is concerned, the following classes are provided to be used in WP7:
·         IsolatedStorageFileStream: Exposes file within isolated storage.
·         IsolatedStorageFile: Represents area containing files and dictionaries.
To accommodate the downloaded resources for the example we will just see, I have programmatically increased the isolated storage file space. In this article, I have used VS2010 (the only IDE used for WP 7 programming) and a Web Service targeted to .NET Framework 3.5.
Update: VB.NET developers take note that there is a Visual Basic CTP for Windows Phone Developer Tools now available. Read the annoucement here.
Task 1: Creating Web Service

Step 1: Open Vs2010 and create blank solution, name it as ‘WP7_DownloadMediaFile’. In this solution, add a Web Service project and name it as ‘MediaWebService’.
Step 2: In the web service project, add a new folder and name it as ‘Videos’. In this folder add some ‘.wmv’ files. (You can add any .wmv files of the size not more than 18-19 MB. The size is a limitation here because of the isolated storage space provided on WP7. We will talk about it in Task 2).
Step 3: Publish the Web Service on IIS (recommended).

Task 2: Creating WP 7 application

Step 1: In the solution created in the Task 1, add a new WP7 application project and name it as ‘WP7_DownloadMediaFile’.
Step 2: Open MainPage.Xaml and write the following code in ‘TitlePanel’ StackPanel element:
<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Play Media" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Media Library" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>
In the ‘ContentPanel’ Grid element, write the following XAML (you can also do Drag-Drop from the Toolbox)
<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
    <Button Content="Download" Height="72" HorizontalAlignment="Left" Margin="6,6,0,0" Name="btnDownload" VerticalAlignment="Top" Width="427" Click="btnDownload_Click" />
    <MediaElement Height="421" HorizontalAlignment="Left" Margin="12,100,0,0" Name="mediaFile" VerticalAlignment="Top" Width="421" MediaEnded="mediaFile_MediaEnded" />
    <ProgressBar Height="41" HorizontalAlignment="Left" Margin="13,537,0,0" Name="progressMedia" VerticalAlignment="Top" Width="423" />
</Grid>

Note: Ignore the events attached to the controls here. We will see them shortly.

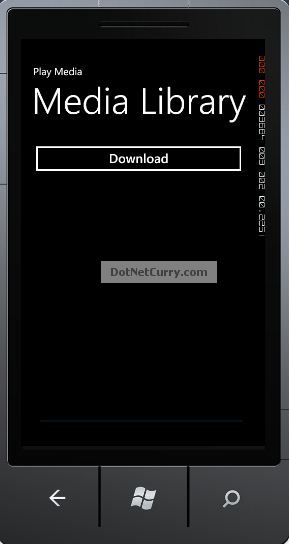

The UI Design will be as below:
WP7Emulator
Step 3: Open MainPage.Xaml.cs and declare following objects at class level:
C#
IsolatedStorageFileStream isolatedStorageFileStream;
IsolatedStorageFile isolatedStorageFile;

VB.NET (Converted Code)
Dim isolatedStorageFileStream_Renamed As IsolatedStorageFileStream
Dim isolatedStorageFile_Renamed As IsolatedStorageFile

In the ‘Download’ button click event, write the following code:
C#
private void btnDownload_Click(object sender, RoutedEventArgs e)
{
    WebClient webClient = new WebClient();
    webClient.DownloadProgressChanged += new DownloadProgressChangedEventHandler(webClient_DownloadProgressChanged);
    webClient.OpenReadCompleted += new OpenReadCompletedEventHandler(webClient_OpenReadCompleted);
    webClient.OpenReadAsync(new Uri("http://localhost:8001/WP7_MediaVd/Videos/Lookout.wmv"));
}


VB.NET (Converted Code)
Private Sub btnDownload_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
      Dim webClient As New WebClient()
      AddHandler webClient.DownloadProgressChanged, AddressOf webClient_DownloadProgressChanged
      AddHandler webClient.OpenReadCompleted, AddressOf webClient_OpenReadCompleted
      webClient.OpenReadAsync(New Uri("http://localhost:8001/WP7_MediaVd/Videos/Lookout.wmv"))
End Sub
The above code makes use of ‘WebClient’ class which is present under ‘System.Net’ namespace. This class is used to perform Asynchronous Upload and Download operations.
Implement the ‘webClient_DownloadProgressChanged’ method. This method will be used to indicate the download progress (UX) to the end user using ProgressBar control.
C#
void webClient_DownloadProgressChanged(object sender, DownloadProgressChangedEventArgs e)
{
    try
    {
        if (progressMedia.Value <= progressMedia.Maximum)
        {
            progressMedia.Value = (double)e.ProgressPercentage;
        }

    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message);
    }
}

VB.NET (Converted Code)
Private Sub webClient_DownloadProgressChanged(ByVal sender As Object, ByVal e As DownloadProgressChangedEventArgs)
      Try
            If progressMedia.Value <= progressMedia.Maximum Then
                  progressMedia.Value = CDbl(e.ProgressPercentage)
            End If

      Catch ex As Exception
            MessageBox.Show(ex.Message)
      End Try
End Sub
Now it is time to read the downloaded media file and play it using the ‘MediaElement’. However here I am using the Isolated Storage of WP7 for storing the downloaded file, so I must demand an increased space in the Isolated Storage to store the file. Thus here I have implemented the following method which will return a ‘Boolean’ value. The value will be ‘True’ is the quota can be increased.
C#
protected bool IncreaseIsolatedStorageSpace(long quotaSizeDemand)
{
    bool CanSizeIncrease = false;
    IsolatedStorageFile isolatedStorageFile = IsolatedStorageFile.GetUserStoreForApplication();
    //Get the Available space
    long maxAvailableSpace = isolatedStorageFile.AvailableFreeSpace;
    if (quotaSizeDemand > maxAvailableSpace)
    {
        if (!isolatedStorageFile.IncreaseQuotaTo(isolatedStorageFile.Quota + quotaSizeDemand))
        {
            CanSizeIncrease = false;
            return CanSizeIncrease;
        }
        CanSizeIncrease = true;
        return CanSizeIncrease;
    }
    return CanSizeIncrease;
}

VB.NET (Converted Code)
Protected Function IncreaseIsolatedStorageSpace(ByVal quotaSizeDemand As Long) As Boolean
      Dim CanSizeIncrease As Boolean = False
      Dim isolatedStorageFile As IsolatedStorageFile = IsolatedStorageFile.GetUserStoreForApplication()
      'Get the Available space
      Dim maxAvailableSpace As Long = isolatedStorageFile.AvailableFreeSpace
      If quotaSizeDemand > maxAvailableSpace Then
            If Not isolatedStorageFile.IncreaseQuotaTo(isolatedStorageFile.Quota + quotaSizeDemand) Then
                  CanSizeIncrease = False
                  Return CanSizeIncrease
            End If
            CanSizeIncrease = True
            Return CanSizeIncrease
      End If
      Return CanSizeIncrease
End Function
This above method is very important. It accepts a ‘long’ as an input parameter which represents the downloaded file size and based upon this size, the isolated storage quota is demanded. The ‘AvailableFreeSpace’ property of the ‘IsolatedStorageFile’ class returns the available space for the isolated storage. If the demanded size is more than the available space, then the quota cannot be increased.
The code shown below writes the downloaded file into the Isolated Storage and then plays it using the ‘mediaFile’ MediaElement.  If the quota cannot be increased, then a message can be displayed to the user.
C#
void webClient_OpenReadCompleted(object sender, OpenReadCompletedEventArgs e)
{
    try
    {
        if (e.Result != null)
        {

            #region Isolated Storage Copy Code
            isolatedStorageFile = IsolatedStorageFile.GetUserStoreForApplication();

            bool checkQuotaIncrease = IncreaseIsolatedStorageSpace(e.Result.Length);

            string VideoFile = "PlayFile.wmv";
            isolatedStorageFileStream = new IsolatedStorageFileStream(VideoFile, FileMode.Create, isolatedStorageFile);
            long VideoFileLength = (long)e.Result.Length;
            byte[] byteImage = new byte[VideoFileLength];
            e.Result.Read(byteImage, 0, byteImage.Length);
            isolatedStorageFileStream.Write(byteImage, 0, byteImage.Length);

            #endregion

            mediaFile.SetSource(isolatedStorageFileStream);
            mediaFile.Play();
            progressMedia.Visibility = Visibility.Collapsed;


        }
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message);
    }
}

VB.NET (Converted Code)
Imports Microsoft.VisualBasic

Private Sub webClient_OpenReadCompleted(ByVal sender As Object, ByVal e As OpenReadCompletedEventArgs)
      Try
            If e.Result IsNot Nothing Then

'                 #Region "Isolated Storage Copy Code"
                  isolatedStorageFile = IsolatedStorageFile.GetUserStoreForApplication()

                  Dim checkQuotaIncrease As Boolean = IncreaseIsolatedStorageSpace(e.Result.Length)

                  Dim VideoFile As String = "PlayFile.wmv"
                  isolatedStorageFileStream = New IsolatedStorageFileStream(VideoFile, FileMode.Create, isolatedStorageFile)
                  Dim VideoFileLength As Long = CLng(Fix(e.Result.Length))
                  Dim byteImage(VideoFileLength - 1) As Byte
                  e.Result.Read(byteImage, 0, byteImage.Length)
                  isolatedStorageFileStream.Write(byteImage, 0, byteImage.Length)

'                 #End Region

                  mediaFile.SetSource(isolatedStorageFileStream)
                  mediaFile.Play()
                  progressMedia.Visibility = Visibility.Collapsed


            End If
      Catch ex As Exception
            MessageBox.Show(ex.Message)
      End Try
End Sub

Now it is the time to provide the end user the facility to decide whether the file is to be replayed or otherwise removed from the storage.
C#
private void mediaFile_MediaEnded(object sender, RoutedEventArgs e)
{
    MessageBoxResult res = MessageBox.Show("Do you want to Replay the file", "Decide", MessageBoxButton.OKCancel);

    if (res == MessageBoxResult.OK)
    {
        mediaFile.Play();
    }
    else
    {
        isolatedStorageFileStream.Close();
        isolatedStorageFile.Dispose();
        mediaFile.ClearValue(MediaElement.SourceProperty);
    }
}

VB.NET (Converted Code)
private void mediaFile_MediaEnded(object sender, RoutedEventArgs e)
{
    MessageBoxResult res = MessageBox.Show("Do you want to Replay the file", "Decide", MessageBoxButton.OKCancel);

    if (res == MessageBoxResult.OK)
    {
        mediaFile.Play();
    }
    else
    {
        isolatedStorageFileStream.Close();
        isolatedStorageFile.Dispose();
        mediaFile.ClearValue(MediaElement.SourceProperty);
    }
}

Step 4: Run the application and click on download
WP7_Emulator_Running_File

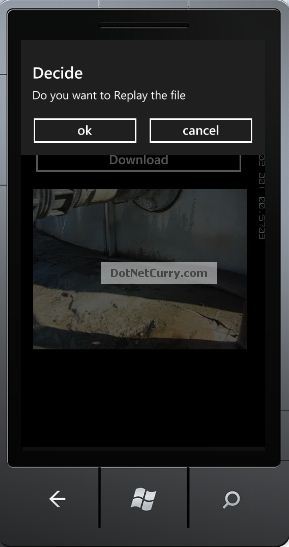

After the video has been played, the following Message box will be displayed
Emulator_Running_File_Demand
If the end user clicks on yes, the file will start running again, otherwise it will be flushed from the storage.
Give a +1 to this article if you think it was well written. Thanks!
