Retrieving Database Information using ASP.NET and SQL Server 2005/2008

Posted by: Suprotim Agarwal , on 2/26/2009, in Category ASP.NET
Views: 37956
Abstract: In this article, we will retrieve database information using ASP.NET and SQL Server. We will be listing down the databases on our server and a list of database objects like Constraints, Procedures, Views etc. belonging to that database.
Retrieving Database Information using ASP.NET and SQL Server 2005/2008

In this article, we will retrieve database information using ASP.NET and SQL Server. We will be listing down the databases on our server and a list of database objects like Constraints, Procedures, Views etc. belonging to that database.
Let us get started. Create an ASP.NET application. Drag and drop a DropDownList, GridView and a SQLDataSource from the toolbox.
We will first populate the DropDownList with a list of databases present on the server. Use the following code to do so. Here we make use of the sys.sysdatabases system view. This view contains one row for each database in an instance of Microsoft SQL Server
C#
using System;
using System.Web.UI;
using System.Data.SqlClient;

public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if(!Page.IsPostBack)
         PopulateDropDown();
    }

    private void PopulateDropDown()
    {
        using (SqlConnection conn = ReturnConnection())
        {
            SqlCommand cmd = new SqlCommand("SELECT name FROM sys.sysdatabases", conn);
            conn.Open();
            SqlDataReader dr = cmd.ExecuteReader();
            if (dr != null)
            {
                while (dr.Read())
                    DropDownList1.Items.Add(dr.GetString(0));
            }
        }
    }

    private SqlConnection ReturnConnection()
    {
        SqlConnection conn = new SqlConnection();
        conn.ConnectionString = "Data Source=(local); Initial Catalog=master; Integrated Security=SSPI;";
        return conn;
    }
}



VB.NET
Imports System
Imports System.Web.UI
Imports System.Data.SqlClient

Partial Public Class _Default
      Inherits System.Web.UI.Page
      Protected Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
            If (Not Page.IsPostBack) Then
             PopulateDropDown()
            End If
      End Sub

      Private Sub PopulateDropDown()
            Using conn As SqlConnection = ReturnConnection()
                  Dim cmd As New SqlCommand("SELECT name FROM sys.sysdatabases", conn)
                  conn.Open()
                  Dim dr As SqlDataReader = cmd.ExecuteReader()
                  If dr IsNot Nothing Then
                        Do While dr.Read()
                              DropDownList1.Items.Add(dr.GetString(0))
                        Loop
                  End If
            End Using
      End Sub

      Private Function ReturnConnection() As SqlConnection
            Dim conn As New SqlConnection()
            conn.ConnectionString = "Data Source=(local); Initial Catalog=master; Integrated Security=SSPI;"
            Return conn
      End Function
End Class

Let us now configure the SQLDataSource to pull the database schema information
Before that, create the following stored procedure in your database. Choose the database as ‘master’ and type the following stored procedure in your SSMS (SQL Server Management Studio) and Execute it (F5)
CREATE PROCEDURE [dbo].[usersp_GetDBData]
@DatabaseName VARCHAR(50)
AS
BEGIN
DECLARE @DBSql NVARCHAR(200)
SET @DBSql = 'USE '+ @DatabaseName + ' ; SELECT name,type_desc,create_date,modify_date
FROM Sys.Objects WHERE Type IN (''C'',''D'',''F'',''P'',''PK'',''U'',''V'') ORDER BY type_desc'
EXEC sp_executesql@DBSql
END
Once the proc has been created, it’s now time to configure the SQLDataSource

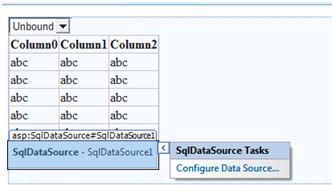

Go to the Design mode of your page and > Click on the smart tag of the SQLDataSource > Configure Data Source
Configure DS
Create a New Data Connection to the master database and click Next. The Dialog will display a screen where you can choose to save your connection string in your web.config. Click the checkbox and save the connection string as ‘masterConnectionString’. An entry will be added to the web.config
<connectionStrings>
 <add name="masterConnectionString" connectionString="Data Source=.;Initial Catalog=master;Integrated Security=True"
   providerName="System.Data.SqlClient" />
 </connectionStrings>

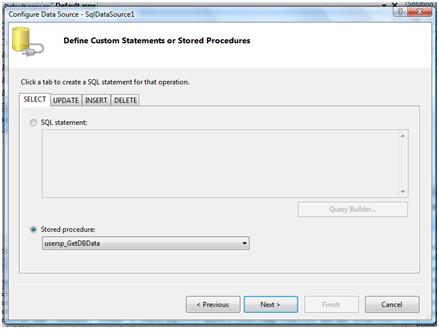

The next step of the Configure Data Source wizard presents you with the option of specifying a custom SQL statement or Stored Procedure. Click Next. In the ‘Define Custom Statements or Stored Procedures’ , select the stored procedure ‘usersp_GetDBData’ that we just created a short while ago > click Next
Configure DS Step 1
In the ‘Define Parameters’ screen, select the Parameter source as ‘Control’ and ControlID as ‘DropDownList1’ > Click Next.
Configure DS Step 2
Test the query and click on the Finish Button.
With the DataSource set, configure the GridView using the smart tag to use this DataSource. I have also enabled Paging and Sorting on the GridView and added some CSS to beautify the GridView. After setting the properties, the markup would look similar to the following:

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
    <style type="text/css">
    body
    {
    font: normal 11px auto "Trebuchet MS", Verdana, Arial, Helvetica, sans-serif;
    background-color: #ffffff;
    color: #4f6b72;
    }

    th {
    font: bold 11px "Trebuchet MS", Verdana, Arial, Helvetica, sans-serif;
    color: #4f6b72;
    border-right: 1px solid #C1DAD7;
    border-bottom: 1px solid #C1DAD7;
    border-top: 1px solid #C1DAD7;
    letter-spacing: 2px;
    text-transform: uppercase;
    text-align: left;
    padding: 6px 6px 6px 12px;
    background: #D5EDEF;
    }

    td {
    border-right: 1px solid #C1DAD7;
    border-bottom: 1px solid #C1DAD7;
    background: #fff;
    padding: 6px 6px 6px 12px;
    color: #4f6b72;
    }

    td.alt
    {
    background: #F5FAFA;
    color: #797268;
    }

    td.boldtd
    {
    font: bold 13px "Trebuchet MS", Verdana, Arial, Helvetica, sans-serif;
    background: #D5EDEF;
    color: #797268;
    }
    </style>
</head>
<body>
<form id="form1" runat="server">
<div>
    <asp:DropDownList ID="DropDownList1" runat="server" AutoPostBack="True">
    </asp:DropDownList>

    <br />

    <asp:GridView ID="GridView1" runat="server" AllowPaging="True"
        AllowSorting="True" DataSourceID="SqlDataSource1">
    </asp:GridView>

    <asp:SqlDataSource ID="SqlDataSource1" runat="server"
        ConnectionString="<%$ ConnectionStrings:masterConnectionString %>"
        SelectCommand="usersp_GetDBData" SelectCommandType="StoredProcedure">
        <SelectParameters>
            <asp:ControlParameter ControlID="DropDownList1" Name="DatabaseName"
                PropertyName="SelectedValue" Type="String" />
        </SelectParameters>

    </asp:SqlDataSource>
    <br />

</div>
</form>
</body>
</html>

It’s now time to run the application. On selecting a database, you can find out the Constraints, Keys, Stored Procedures, Views etc in that database.
Shot
I hope you liked the article and I thank you for viewing it.
