Grouping in Silverlight 3 DataGrid

Posted by: Harsh Bardhan , on 4/21/2009, in Category Silverlight 2, 3, 4 and 5
Views: 36309
Abstract: DataGrid is a very useful and powerful control whether used in a Windows or a Web application. Grouping data is a very common requirement in the DataGrid. In Silverlight 3 DataGrid, we can now group records with ease. In this article, we will first explore how to group data from a static datasource. Later on, we will then connect to database and group the data from the database.
Grouping in Silverlight 3 DataGrid

DataGrid is a very useful and powerful control whether used in a Windows or a Web application. The DataGrid control is a databound control and is a flexible way to display data in a tabular format with features like sorting, dragging column headers etc.
While using the DataGrid in Silverlight 2, a common requirement was to group similar records (For e.g. group all records of particular city together). We got a similar mail from one of our visitors Rachida, who wanted to know how to group data in the Silverlight DataGrid. Well in Silverlight 3 DataGrid, this feature has been added and now we can group records with ease. In this article, we will first explore how to group data from a static datasource. Later on, we will then connect to database and group the data from the database. This
Note: For data grouping we have to set fields name based on which we want to group data.
Step 1: Open Visual Studio 2008 > File > New Project > Select the language (C# or VB.NET) > Select ‘Silverlight’ in the Project Types > from the templates, select ‘Silverlight Application’. Type a name (DataGridGrouping) and location for the project and click OK (see Figure below).
New Project
Step 2: Choose the first option ‘Add a new Web to the solution for hosting the control’ and the project type as ‘Web Site’ and click OK. You will see that two projects are created: DataGridGrouping.Web and DataGridGrouping.
New Silverlight App
Step 3:  Create a class called CompanyDetails in our codebehind file MainPage.xaml.cs. The class will have the following properties: Company Name, Location, EmployeeAge, EmloyeeFirstName and EmployeeLastName. We will use List<CompanyDetails> as datasource of DataGrid control. The class will look like this:

C#

public class CompanyDetails
{
    public string CompanyName
    {
        get;
        set;
    }
    public string Location
    {
        get;
        set;
    }
    public int EmployeeAge
    {
        get;
        set;
    }
    public String EmloyeeFirstName
    {
        get;
        set;
    }
    public string EmployeeLastName
    {
        get;
        set;
    }
}


VB.NET

Public Class CompanyDetails
      Private privateCompanyName As String
      Public Property CompanyName() As String
            Get
                  Return privateCompanyName
            End Get
            Set(ByVal value As String)
                  privateCompanyName = value
            End Set
      End Property

      Private privateLocation As String
      Public Property Location() As String
            Get
                  Return privateLocation
            End Get
            Set(ByVal value As String)
                  privateLocation = value
            End Set
      End Property

      Private privateEmployeeAge As Integer
      Public Property EmployeeAge() As Integer
            Get
                  Return privateEmployeeAge
            End Get
            Set(ByVal value As Integer)
                  privateEmployeeAge = value
            End Set
      End Property

      Private privateEmloyeeFirstName As String
      Public Property EmloyeeFirstName() As String
            Get
                  Return privateEmloyeeFirstName
            End Get
            Set(ByVal value As String)
                  privateEmloyeeFirstName = value
            End Set
      End Property

      Private privateEmployeeLastName As String
      Public Property EmployeeLastName() As String
            Get
                  Return privateEmployeeLastName
            End Get
            Set(ByVal value As String)
                  privateEmployeeLastName = value
            End Set
      End Property
End Class


In our example, we will be grouping by CompanyName, Location and EmployeeAge.

Step 4: For grouping purpose we have to use PropertyGroupDescription property which is in System.ComponentModel assembly. Open MainPage.Xaml file and add a xmlNamespace reference to the assembly System.ComponentModel which is having PropertyGroupDescription property.

We will add xmlNamespace in usercontrol section of Xaml as shown below:
<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="DataGridGrouping.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:group="clr-namespace:System.Windows.Data;assembly=System.ComponentModel"
    Width="600" Height="400">

Step 5: Now add the DataGrid from the toolbox and specify properties in the GroupDescription Property of DataGrid, based on which you want to Group the data. In our case, we will be grouping by CompanyName, Location and EmployeeAge. Our .xaml File will look like this.
<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="DataGridGrouping.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:group="clr-namespace:System.Windows.Data;assembly=System.ComponentModel"
    Width="600" Height="400">
    <Grid x:Name="LayoutRoot" Background="White">
<data:DataGrid x:Name="dgCompDetails" AutoGenerateColumns="True">
            <data:DataGrid.GroupDescriptions>
                <group:PropertyGroupDescription PropertyName="CompanyName" />
                <group:PropertyGroupDescription PropertyName="Location" />
                <group:PropertyGroupDescription PropertyName="EmployeeAge" />
            </data:DataGrid.GroupDescriptions>

</data:DataGrid>

    </Grid>
</UserControl>

As shown above, the propertygroupdescriptions have been created for CompanyName, Location and EmployeeAge.

Step 6: We will now create a list of CompanyDetails and bind it to DataGrid.
So our complete Codebehind file will look like this.
C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;

namespace DataGridGrouping
{
    public partial class MainPage : UserControl
    {
        public MainPage()
        {
            InitializeComponent();


             List<CompanyDetails> compDetails = new List<CompanyDetails>();

            compDetails.Add(new CompanyDetails() { CompanyName = "Symphony Services",Location="Bangalore", EmployeeAge=23,EmloyeeFirstName="Harsh" ,EmployeeLastName="Bardhan"});
            compDetails.Add(new CompanyDetails() { CompanyName = "Symphony Services",Location="Bangalore", EmployeeAge=23,EmloyeeFirstName="Ashish", EmployeeLastName="Kumar"});
            compDetails.Add(new CompanyDetails() { CompanyName = "Symphony Services", Location = "Bangalore", EmployeeAge = 24, EmloyeeFirstName = "Nimesh", EmployeeLastName = "Prabhakar" });
            compDetails.Add(new CompanyDetails() { CompanyName = "Symphony Services", Location = "Pune", EmployeeAge = 23, EmloyeeFirstName = "Selva", EmployeeLastName = "Mohandoss" });
            compDetails.Add(new CompanyDetails() { CompanyName = "Symphony Services", Location = "Pune", EmployeeAge = 23, EmloyeeFirstName = "Raj", EmployeeLastName = "Kumar" });

            compDetails.Add(new CompanyDetails() { CompanyName = "DotNet Curry", Location = "Pune", EmployeeAge = 30, EmloyeeFirstName = "Suprotim", EmployeeLastName = "Agarwal" });
            compDetails.Add(new CompanyDetails() { CompanyName = "DotNet Curry", Location = "Pune", EmployeeAge = 32, EmloyeeFirstName = "Carol", EmployeeLastName = "Nadarwalla" });

            dgCompDetails.ItemsSource=compDetails;

        }
    }

    public class CompanyDetails
    {
        public string CompanyName
        {
            get;set;
        }
        public string Location
        {
            get;set;
        }
         public int EmployeeAge
        {
            get;set;
        }
        public String EmloyeeFirstName
        {
            get;set;
        }
        public string EmployeeLastName
        {
            get;set;
        }
    }
}
VB.NET
Imports System
Imports System.Collections.Generic
Imports System.Linq
Imports System.Net
Imports System.Windows
Imports System.Windows.Controls
Imports System.Windows.Documents
Imports System.Windows.Input
Imports System.Windows.Media
Imports System.Windows.Media.Animation
Imports System.Windows.Shapes

Namespace DataGridGrouping
      Partial Public Class MainPage
            Inherits UserControl
            Public Sub New()
                  InitializeComponent()


                   Dim compDetails As New List(Of CompanyDetails)()

                  compDetails.Add(New CompanyDetails() With {.CompanyName = "Symphony Services", .Location="Bangalore", .EmployeeAge=23, .EmloyeeFirstName="Harsh", .EmployeeLastName="Bardhan"})
                  compDetails.Add(New CompanyDetails() With {.CompanyName = "Symphony Services", .Location="Bangalore", .EmployeeAge=23, .EmloyeeFirstName="Ashish", .EmployeeLastName="Kumar"})
                  compDetails.Add(New CompanyDetails() With {.CompanyName = "Symphony Services", .Location = "Bangalore", .EmployeeAge = 24, .EmloyeeFirstName = "Nimesh", .EmployeeLastName = "Prabhakar"})
                  compDetails.Add(New CompanyDetails() With {.CompanyName = "Symphony Services", .Location = "Pune", .EmployeeAge = 23, .EmloyeeFirstName = "Selva", .EmployeeLastName = "Mohandoss"})
                  compDetails.Add(New CompanyDetails() With {.CompanyName = "Symphony Services", .Location = "Pune", .EmployeeAge = 23, .EmloyeeFirstName = "Raj", .EmployeeLastName = "Kumar"})

                  compDetails.Add(New CompanyDetails() With {.CompanyName = "DotNet Curry", .Location = "Pune", .EmployeeAge = 30, .EmloyeeFirstName = "Suprotim", .EmployeeLastName = "Agarwal"})
                  compDetails.Add(New CompanyDetails() With {.CompanyName = "DotNet Curry", .Location = "Pune", .EmployeeAge = 32, .EmloyeeFirstName = "Carol", .EmployeeLastName = "Nadarwalla"})

                  dgCompDetails.ItemsSource=compDetails

            End Sub
      End Class

      Public Class CompanyDetails
            Private privateCompanyName As String
            Public Property CompanyName() As String
                  Get
                        Return privateCompanyName
                  End Get
                  Set(ByVal value As String)
                        privateCompanyName = value
                  End Set
            End Property
            Private privateLocation As String
            Public Property Location() As String
                  Get
                        Return privateLocation
                  End Get
                  Set(ByVal value As String)
                        privateLocation = value
                  End Set
            End Property
             Private privateEmployeeAge As Integer
             Public Property EmployeeAge() As Integer
                   Get
                         Return privateEmployeeAge
                   End Get
                   Set(ByVal value As Integer)
                         privateEmployeeAge = value
                   End Set
             End Property
            Private privateEmloyeeFirstName As String
            Public Property EmloyeeFirstName() As String
                  Get
                        Return privateEmloyeeFirstName
                  End Get
                  Set(ByVal value As String)
                        privateEmloyeeFirstName = value
                  End Set
            End Property
            Private privateEmployeeLastName As String
            Public Property EmployeeLastName() As String
                  Get
                        Return privateEmployeeLastName
                  End Get
                  Set(ByVal value As String)
                        privateEmployeeLastName = value
                  End Set
            End Property
      End Class
End Namespace


Step 7: Run your application and you will find that items are grouped based on the specified GroupColumn (see Screenshot below).
Static Grouping
Well that was the first part of this article, where we explored how to bind and group data with static a datasource. What we will do now is connect the DataGrid to a database and then group data. I will use Linq to SqlClasses and WebServices (will keep that very simple).
Note: We can use RIAServices / WCF or ADOT DataServices also.
Note: I am assuming you have SQLServer installed and you have the Northwind database.
If you don’t have the Northwind database required for this example, you can download it from link mentioned below and run script.  http://www.microsoft.com/downloads/details.aspx?FamilyID=06616212-0356-46A0-8DA2-EEBC53A68034&displaylang=en

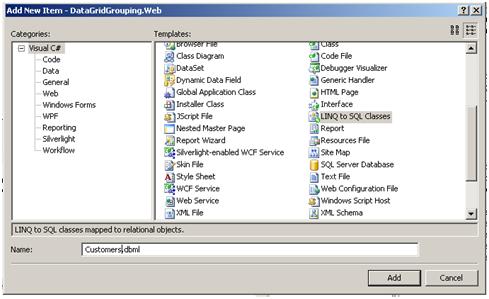

Step 8: Go to your WebProject DataGridGrouping.Web project and add LinqToSql classes and name it as Customers.dbml.
Add New item
Step 9: You will get Designer Page of the dbml file. Click on the Server Explorer and point to the ‘Northwind’ database by specifying your ServerName and credentials.
Select Customer Table of Northwind from Server Explorer and drag it to the designer surface of the dbml file.
Customer Table
Step 10: Set ‘SerializationMode’ property of CustomersDataContext to Unidirectional (see screenshot below) and click on Save.
Serialization
Step 11: Now we will add a webservice to our project. Go To your WebProject DataGridGrouping.Web Project > add a  ‘Web Service’ and name it as ‘CustomerService.asmx’ > click on Add.
Add New Item
Step 12: Now modify the default ‘HelloWorld’ method and change its name to ‘CustomerDetails’ and the return type of that to List<Customer>.
Your service class will look like this.
C#
namespace DataGridGrouping.Web
{
    ///<summary>
    /// Summary description for EmployeeService
    ///</summary>
    [WebService(Namespace = "http://tempuri.org/")]
    [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
    [System.ComponentModel.ToolboxItem(false)]
    // To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
    // [System.Web.Script.Services.ScriptService]
    public class CustomerService : System.Web.Services.WebService
    {

        [WebMethod]
        public List<Customer> CustomerDetails()
        {
            //Creating CustomerContext object and returning customer list
            CustomersDataContext customerContext = new CustomersDataContext();
            return customerContext.Customers.ToList();


        }
    }
}

VB.NET
Namespace DataGridGrouping.Web
      ''' <summary>
      ''' Summary description for EmployeeService
      ''' </summary>
      ' To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
      ' [System.Web.Script.Services.ScriptService]
      <WebService(Namespace := "http://tempuri.org/"), WebServiceBinding(ConformsTo := WsiProfiles.BasicProfile1_1), System.ComponentModel.ToolboxItem(False)> _
      Public Class CustomerService
            Inherits System.Web.Services.WebService

            <WebMethod> _
            Public Function CustomerDetails() As List(Of Customer)
                  'Creating CustomerContext object and returning customer list
                  Dim customerContext As New CustomersDataContext()
                  Return customerContext.Customers.ToList()


            End Function
      End Class
End Namespace

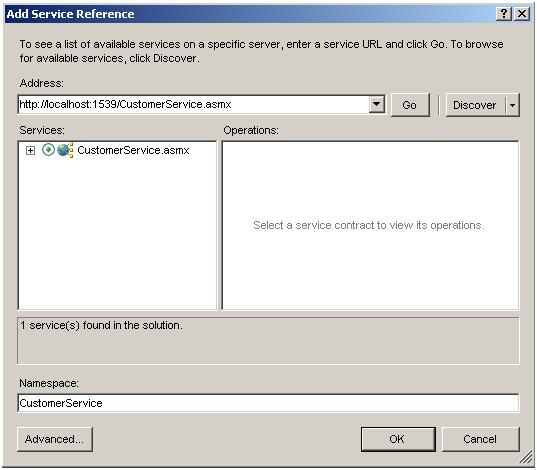

Step 13: Now add a reference to your service in your Silverlight (“DataGridGrouping”) Project and set the namespace as ‘CustomerService’.
Add Service Reference
Step 14: Now open your Page.xaml and specify the ‘Country’ and ‘City’ as Grouping parameter since our datasource is having these property.
Our Page.Xaml will look like this.
<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="DataGridGrouping.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:group="clr-namespace:System.Windows.Data;assembly=System.ComponentModel"
    Width="600" Height="400">
    <Grid x:Name="LayoutRoot" Background="White">
<data:DataGrid x:Name="dgCompDetails" AutoGenerateColumns="True">
            <data:DataGrid.GroupDescriptions>
                <group:PropertyGroupDescription PropertyName="Country" />
                <group:PropertyGroupDescription PropertyName="City" />

            </data:DataGrid.GroupDescriptions>

</data:DataGrid>

    </Grid>
</UserControl>

Step 15: Now call the service method and in its completed handler, set DataGrid’s ItemSource. Our Page will look like this.
C#
namespace DataGridGrouping
{
    public partial class MainPage : UserControl
    {
        public MainPage()
        {
            InitializeComponent();
            CustomerService.CustomerServiceSoapClient customerClient =
                new CustomerService.CustomerServiceSoapClient();
            customerClient.CustomerDetailsAsync();
            customerClient.CustomerDetailsCompleted +=
                new EventHandler<DataGridGrouping.CustomerService.CustomerDetailsCompletedEventArgs>(customerClient_CustomerDetailsCompleted);
        }

        void customerClient_CustomerDetailsCompleted(object sender, DataGridGrouping.CustomerService.CustomerDetailsCompletedEventArgs e)
        {
            dgCompDetails.ItemsSource = e.Result;
        }
    }
}
VB.NET
Namespace DataGridGrouping
      Partial Public Class MainPage
            Inherits UserControl
            Public Sub New()
                  InitializeComponent()
                  Dim customerClient As New CustomerService.CustomerServiceSoapClient()
                  customerClient.CustomerDetailsAsync()
                  AddHandler customerClient.CustomerDetailsCompleted, AddressOf customerClient_CustomerDetailsCompleted
            End Sub

            Private Sub customerClient_CustomerDetailsCompleted(ByVal sender As Object, ByVal e As DataGridGrouping.CustomerService.CustomerDetailsCompletedEventArgs)
                  dgCompDetails.ItemsSource = e.Result
            End Sub
      End Class
End Namespace

Step 16: Now we are ready to run our application. Run your application and you will get the data grouped in the DataGrid as shown in the screen below
Running Application
If you liked the article,  Subscribe to the RSS Feed or Subscribe Via Email
Harsh Bardhan (MCTS) has developed IT solutions with a diverse background in server side and client side development. He is currently working with SymphonyServices as a Software developer. Harsh continues to be an integral part of open forums on cutting-edge technology like Silverlight, including the .NET Framework and Web Services. Harsh has expertise with many Microsoft technologies, including .NET, LINQ, WCF Service, Silverlight and a strong background in SQLServer.

This article has been editorially reviewed by Suprotim Agarwal.

Absolutely Awesome Book on C# and .NET

C# and .NET have been around for a very long time, but their constant growth means there’s always more to learn.

We at DotNetCurry are very excited to announce the The Absolutely Awesome Book on C# and .NET. This is a 500 pages concise technical eBook available in PDF, ePub (iPad), and Mobi (Kindle).

Organized around concepts, this eBook aims to provide a concise, yet solid foundation in C# and .NET, covering C# 6.0, C# 7.0 and .NET Core, with chapters on the latest .NET Core 3.0, .NET Standard and the C# 8.0 (final release) too. Use these concepts to deepen your existing knowledge of C# and .NET, to have a solid grasp of the latest in C# and .NET OR to crack your next .NET Interview.

Click here to Explore the Table of Contents or Download Sample Chapters!

What Others Are Reading!
Was this article worth reading? Share it with fellow developers too. Thanks!
Share on LinkedIn
Share on Google+

Author
Author bio not available


Page copy protected against web site content infringement 	by Copyscape




Feedback - Leave us some adulation, criticism and everything in between!
Comment posted by netgrid on Friday, November 2, 2012 7:12 AM
thank for giving information.its very informative..net Grid is a very useful and powerful control and used in a Winform  application.more detail you can visit dapfor. com

Categories

JOIN OUR COMMUNITY

POPULAR ARTICLES

C# .NET BOOK

C# Book for Building Concepts and Interviews

Tags

JQUERY COOKBOOK

jQuery CookBook
