Connect to MongoDB from .NET using Web API

MongoDB is a popular NoSQL Database with a fast growing user base as well as feature list. MongoDB can be downloaded and Installed for free from here. If you don’t want to install MongoDB for experimenting, you can use one of the Hosted Providers. In this demo we’ll use MongoHQ so we’ll start with setting up a MongoDB on MongoHQ

Getting Started with MongoHQ – MongoDB in the Cloud

To get started with MongoHQ we’ll have to Sign Up first. So in the next few steps, we’ll go from Signup all the way to creating a Database.

Step 1: You enter the following information first.

Step 2: When you click on Create Account, it moves to the next step where it asks for Credit Card Information, but that’s optional and you can skip it to try out the free version for now.

Step 3: At this point, you will be presented with a screen to create your database. Don’t do it yet. On the Top Right corner of your screen you will see your account name, pull it down and click on the Account Settings.

It is important that you setup the Default Database User first. Give it a username and password and remember these two e.g. (administrator/password).

Step 5: Now you can click on the Create Database button on the top right to navigate to the New Database screen.

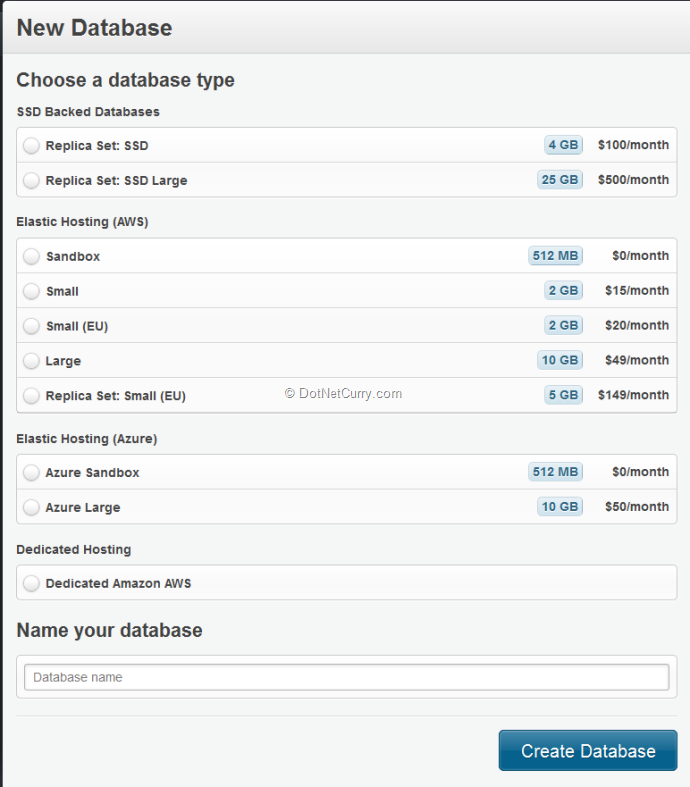

Step 6: In the New Database page, select the Host and the Type you want. I selected the 512 Mb option which is free at the moment. You also have to specify your Database name e.g. MyFirstDb. Click on Create Database to complete the DB Creation process.

Once it completes, you’ll see a dialog as the following:

Step 7: Note the Mongo URI, you’ll need this later. Our MongoDB instance is now ready for use.

Setting up the Web API

Now that we have got an Instance of MongoDB to talk to, we can setup our Web API and send/retrieve data from it.

Step 1: Create a new MVC 4 project with the Basic template (or the Web API template).

Step 2: Add an Empty WebAPiController called MongoDbController.

Step 3: In the Web.Config, add the connection string from Step 7 above. You have to include the User Name and Password as follows:

<add name="MongoHQ" connectionString="mongodb://administrator:xxxxxxxx@widmore.mongohq.com:10010/MyFirstDb" />

Replace the ‘xxxxxxxx’ with your plaintext password.

Step 4: Install MongoDB Drivers from Nuget using the following command

PM> Install-Package mongocsharpdriver

Step 5: In the MongoDbController, add a field for the MongoDatabase and initialize it using the RetrieveMongohqDb method.

readonly MongoDatabase mongoDatabase;

public MongoDbController()
{
mongoDatabase = RetreiveMongohqDb();
}

The RetrieveMongohqDb method simple instantiates a MongoClient using the connection string we added to the Web.Config. Next we retrieve the MongoServer using the mongoClient and finally pull out the database (MyFirstdb) from the server. This ensures everytime the Controller is invoked, the MongoDb is ready for us. Ideally this will go in a Repository. This is just demo code.

private MongoDatabase RetreiveMongohqDb()
{
MongoClient mongoClient = new MongoClient(
    new MongoUrl(ConfigurationManager.ConnectionStrings
     ["MongoHQ"].ConnectionString));
MongoServer server = mongoClient.GetServer();
return mongoClient.GetServer().GetDatabase("MyFirstDb");
}

Step 6: Add a model entity or as referred to in case of MongoDB a document with the following attributes:

public class Contact
{
[BsonId]
public string Id { get; set; }
public string Name { get; set; }
public string Address { get; set; }
public string Email { get; set; }
public string Phone { get; set; }
}

The BsonId attribute is provided by the MongoDb driver and converts a string into an Id that MongoDB understands while saving, and converts it back to a string while loading/reading data.

Step 7: Implementing the Get All request - We’ll create a Get Method that retrieves all the Contacts from the Database. Since we are using WebApi Controller, we simply return the enumerable collection of data returned. The returned Enumerable is converted into a List of Contact objects.

public IEnumerable<Contact> GetAll()
{
List<Contact> model = new List<Contact>();
var contactsList = mongoDatabase.GetCollection("Contacts").FindAll().AsEnumerable();
model = (from contact in contactsList
  select new Contact
  {
   Id = contact["_id"].AsString,
   Name = contact["Name"].AsString,
   Address = contact["Address"].AsString,
   Phone = contact["Phone"].AsString,
   Email = contact["Email"].AsString
  }).ToList();
  return model;
}

Step 8: Creating or Updating a Contact – Next we add an HttpPost method that accepts a Contact object and depending on whether it has an Id, either creates a new one, or updates the existing one. The code for this is as follows:

public Contact Save(Contact contact)
{
var contactsList = mongoDatabase.GetCollection("Contacts");
WriteConcernResult result;
bool hasError = false;
if (string.IsNullOrEmpty(contact.Id))
{
  contact.Id = ObjectId.GenerateNewId().ToString();
  result = contactsList.Insert<Contact>(contact);
  hasError = result.HasLastErrorMessage;
}
else
{
  IMongoQuery query = Query.EQ("_id", contact.Id);
  IMongoUpdate update = Update
   .Set("Name", contact.Name)
   .Set("Address", contact.Address)
   .Set("Phone", contact.Phone)
   .Set("Email", contact.Email);
   result = contactsList.Update(query, update);
   hasError = result.HasLastErrorMessage;
}
if (!hasError)
{
  return contact;
}
else
{
  throw new HttpResponseException(HttpStatusCode.InternalServerError);
}
}

Ideally we can break the persistence logic which should be in a Repository and we should break this method up into two, one for Insert and one for Update. The condition for Insert is simple, if the incoming Contact doesn’t have an Id, create a new Id and send it to Server. If the incoming contact has an Id, create an instance of IMongoQuery object using keyed on the contact.Id. We then set the properties that need to be updated in the IMongoUpdate instance.

Finally the contactsList collection fires the Update using the query and update instances. We can verify a successful update but checking for result.HasLastErrorMessage.

That’s about all the code we have. We don’t have a UI so we’ll use Fiddler to do our Testing.

Testing our Web API

Run the application, it will show a YSOD saying Resource cannot be found.

Navigate to the /api/MongoDb/ URL (e.g. http://localhost:61093/api/MongoDb/). IE will download the Json. First time around the Json array is empty.

Next we use Fiddler Composer to compose a PUT request and send a Contact info in JSON format.

Now if we do a Get again, we’ll see the Json returns with the following data.

Finally we compose another POST in Fiddler and change the Name from Suprotim to Supro and Post it. At the backend, the execution goes to the else path because this time it has an Id associated. As a result the Contact is now updated.

You can verify the same from MongoHq’s dashboard as well. Cool!

Conclusion

Mongo DB is getting popular as a NoSql Document database specially where fast storage and retrieval is important but reporting is not a criteria. Today we scraped the surface of how we can connect to Mongo DB from .NET using Web API. We used a free Hosted Solution. In future we will investigate how to do this on a local MongoDB instance as well.

Download the entire source code of this article (Github)
