Silverlight 5 Beta: What’s New?

Posted by: Pravinkumar Dabade , on 4/18/2011, in Category Silverlight 2, 3, 4 and 5
Views: 40632
Abstract: Silverlight 5 Beta was announced recently by Microsoft. In this article, we will see some of the new features introduced in Silverlight 5 Beta.

Silverlight 5 Beta was announced recently at the MIX11 conference by Scott Guthrie. In this article, we will see some of the new features introduced in Silverlight 5 Beta.

Before you proceed, check some important links including the link to download Silverlight 5 Beta from here. Just make sure you have installed Visual Studio 2010 SP1. There are tones of new features included in Silverlight 5.0 Beta. In this article, we will explore some of these new features -

Please note that this article was written using the Silverlight 5 Beta, as available at MIX11.

1. Debugging Bindings with Silverlight 5. Adding Break points in XAML

XAML debugging with breakpoints on bindings has been one of the most requested tooling features. Let’s see what this feature is and how to use it.

Let's create our First Silverlight 5 Project using Visual Studio 2010. Name the project as 'BindingDebugInSL5' and choose Silverlight 5 version as shown below -

Silverlight 5 XAML Debugging

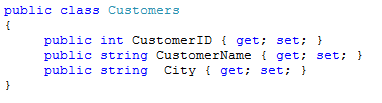

Now let's add a Customers class as shown below, to our Silverlight Project -

Customer class

Now let's design our screen to show customer data in our Silverlight Page. To design the screen, let's copy and paste the XAML code below, in between the <Grid></Grid>  tags -



Now let's create an instance of 'Customers' class and assign it as a data context. Write the following code in the Constructor of the MainPage.xaml -


Now let's add the break point in our XAML. Please note that you can add Break Points only on the Bindings and not on plain XAML as shown below -

Silverlight XAML Debug

Now press 'F5'and run your Silverlight application. You will see your break point got hit and you can now see the data in a 'Local Window'-

Silverlight XAML Debug

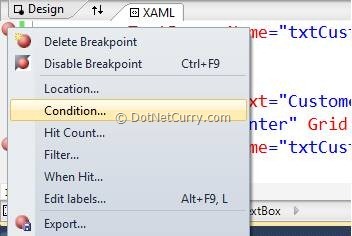

If you want, you can access the break points on errors too. I have seen this syntax on the Silverlight.NET site -

Silverlight Breakpoint

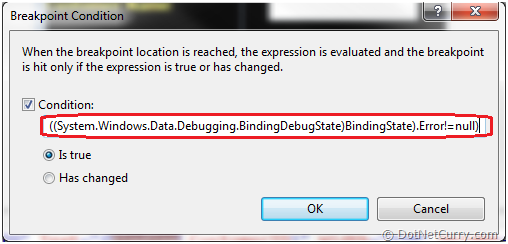

You can write the following code -

Silverlight Breakpoint


2. RichTextBox Overflow

In Silverlight 5, we now have the RichTextBoxOverflow which can be used instead of the Vertical and Horizontal scroll bars -

Let's create a project with the name 'RTBOverFlowExample'. Now add a 'RichTextBox' control with some text. I have set the 'Height' and 'Width' of the Grid to '300' and '500' respectively. Here is some code -


If you check the above code, I have set 'VerticalScrollBarVisibility="Visible"'. Because of this, I can scroll the contents vertically. The output is shown below -

Silverlight 5 RTB

Now what if I don't want to Scroll the contents. Well we can use the new Silverlight 5 RichTextBoxOverflow here. Let's make  'VerticalScrollBarVisibility="Disabled"'. Add the following code after the </RichTextBox> as shown below -


Now let's inform our 'RichTextBox' about the overflow by adding below property in our 'RichTextBox' as shown below -

OverflowContentTarget="{Binding ElementName=ContinueNews}"

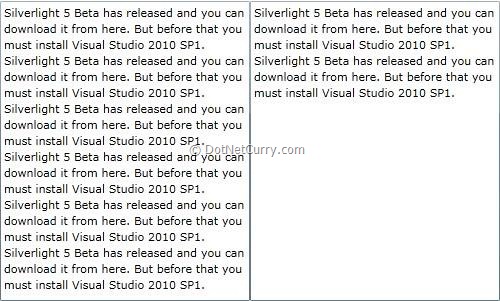

Now if you run the project, your overflow text will be shown in the second 'RichTextBox' as shown below -

Silverlight 5 RichTextBoxOverflow


3. Silverlight 5 - Double Click and Triple click and may more

In Silverlight 5, we have now a 'ClickCount' Property. This property captures the number of clicks on an object, like the Ellipse.

So let's create a Silverlight project with the name 'MultiClickExample'. Now let's add a 'Rectangle' control to our Silverlight Page as shown below -


If you see the code carefully, we have a MouseLeftButtonDown event. So, let's add a code to this event.

Before that, we need to declare a variable at the class level as shown below -

int seconds=0;

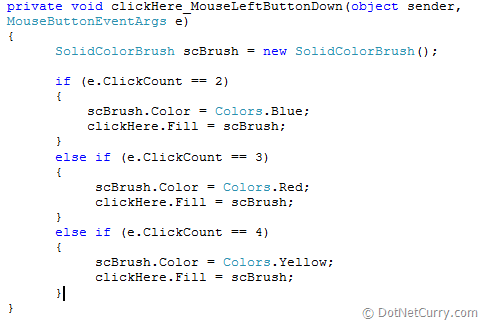

Now let's write code in our MouseLeftButtonDown event as below -


Now hit 'F5' and count your clicks!


4. Create New Operating System Window using 'Window' class

In previous versions of Silverlight, we could not create new operating system windows. To create pop up content, we used either the ChildWindow control or the Popup element.

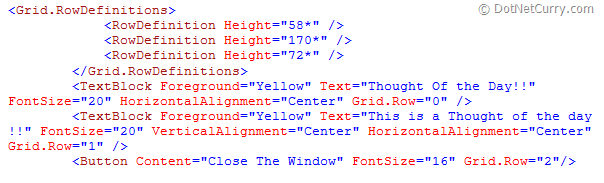

Now for creating a PopUp windows in Silverlight 5, we can use the 'Window' class. Please note that this will work only in Out-Of-Browser Silverlight applications. So let's create a Silverlight Application with the name 'ÓSWindowExample'. Add a User Control with the name 'ThoughtOfTheDay' and copy the below contents in between <Grid>/<Grid>

Silverlight 5 New Window

Now add the following code in between <Grid></Grid> in our MainPage.xaml -

<Button Height="50" Width="200" Content="Show Thought of the Day !!" Click="Button_Click"/>

In the code behind of the MainPage.xaml.cs file, write some code for displaying a window which will embed the UserControl as its content.


If you see the above code, we are creating an object of Window class and setting its 'Height' and 'Width' property. We are then setting its Title property. After this, we are setting the Content of this window as an object of UserControl, followed by setting its Visibility property to visible.

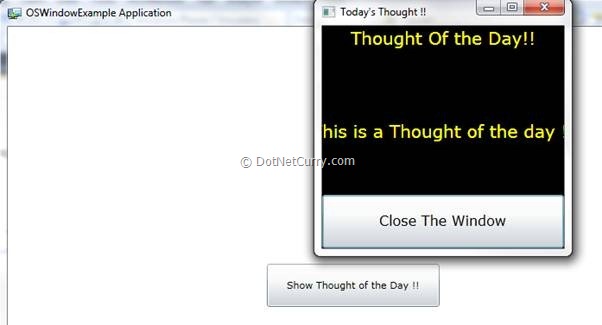

That's all. Run your application and click the button. You will see the Window PopUp as shown below -

Silverlight 5 Window Pop


5. Use Low Latency Sound effects in Silverlight 5 with the use of two different classes

The MediaElement was not good enough for low latency sounds (like audio loops) or real time sound effects. However in Silverlight 5, you have two classes - the first class is the SoundEffect class and second class is SoundEffectInstance class which allows control over the volume, pitch and much more. These classes belongs to a namespace - Microsoft.Xna.Framework.Audio;

You can also play .WAV files in Silverlight 5 Beta.

Apart from these changes mentioned in this articles, there are a couple of other General changes and in the Silverlight 3d graphic API as well. We will cover all these in the next article.

Conclusion- In this article, we have seen What's new in Silverlight 5.0 beta. We have see 'Debugging Bindings', 'RichTextBoxOverflow', 'Double and more clicks', 'Çreating OS Windows' in Silverlight 5 Beta and changes in Low latency sound effects with simple examples.

The entire source code of this article can be downloaded over here
